Laser marking

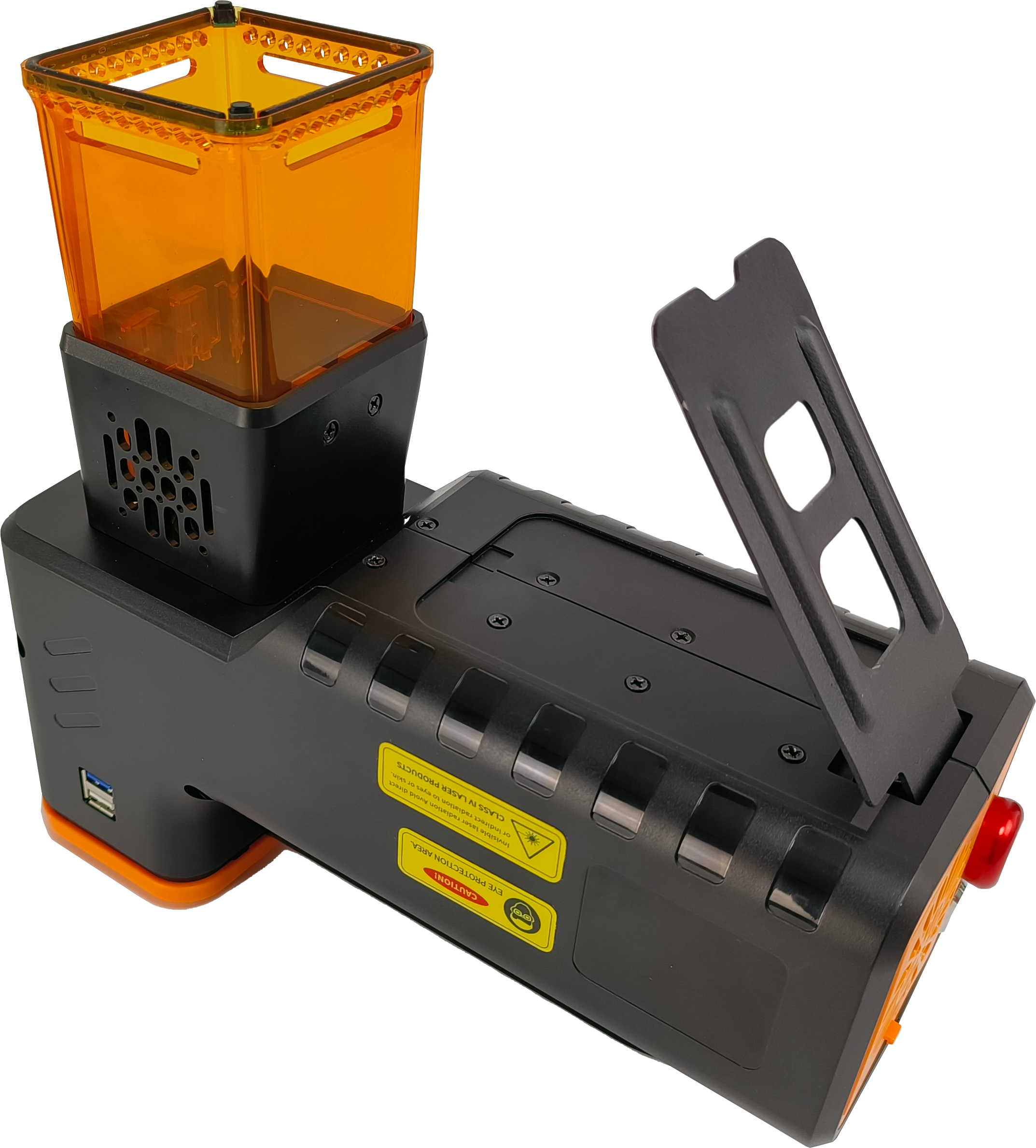

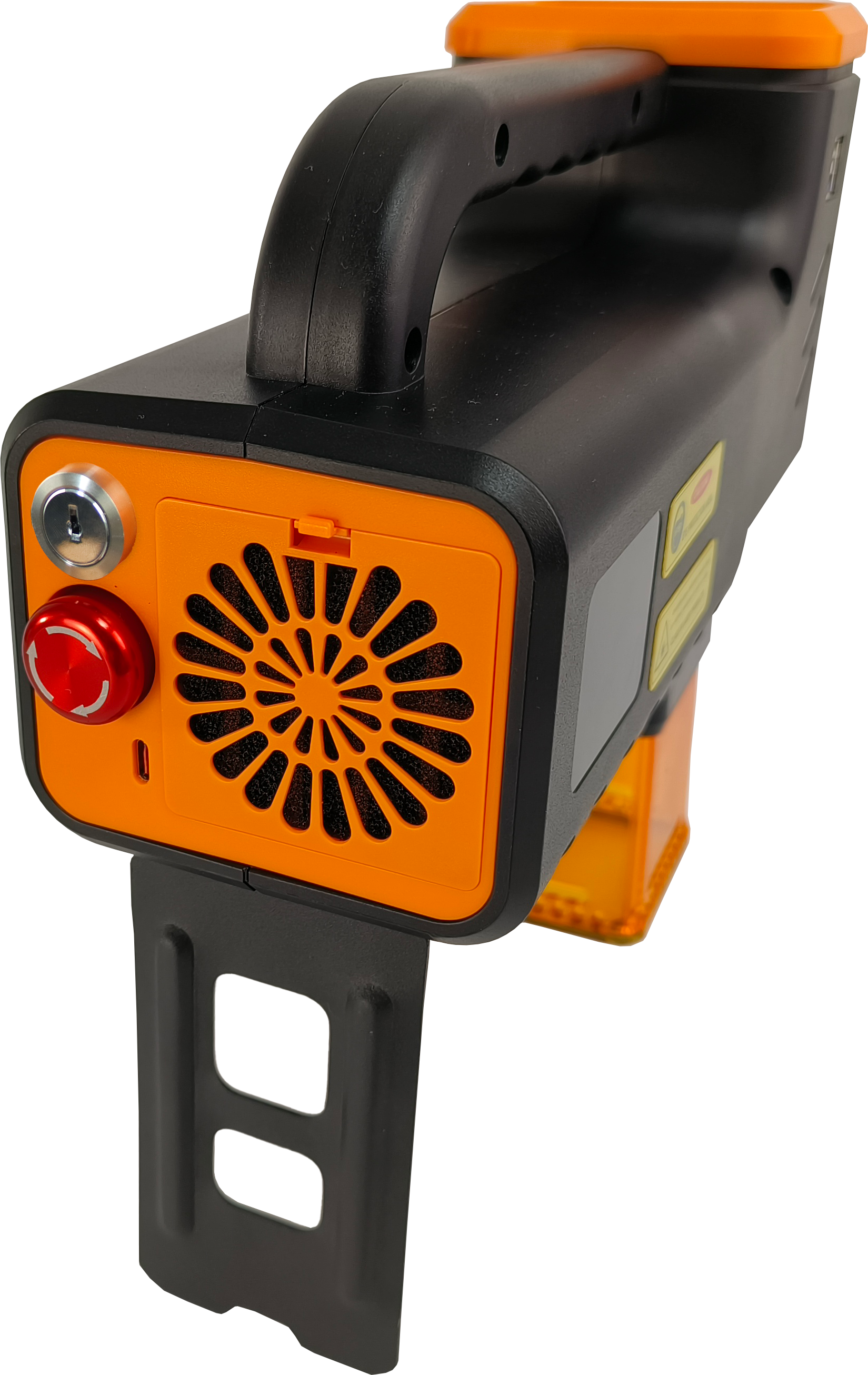

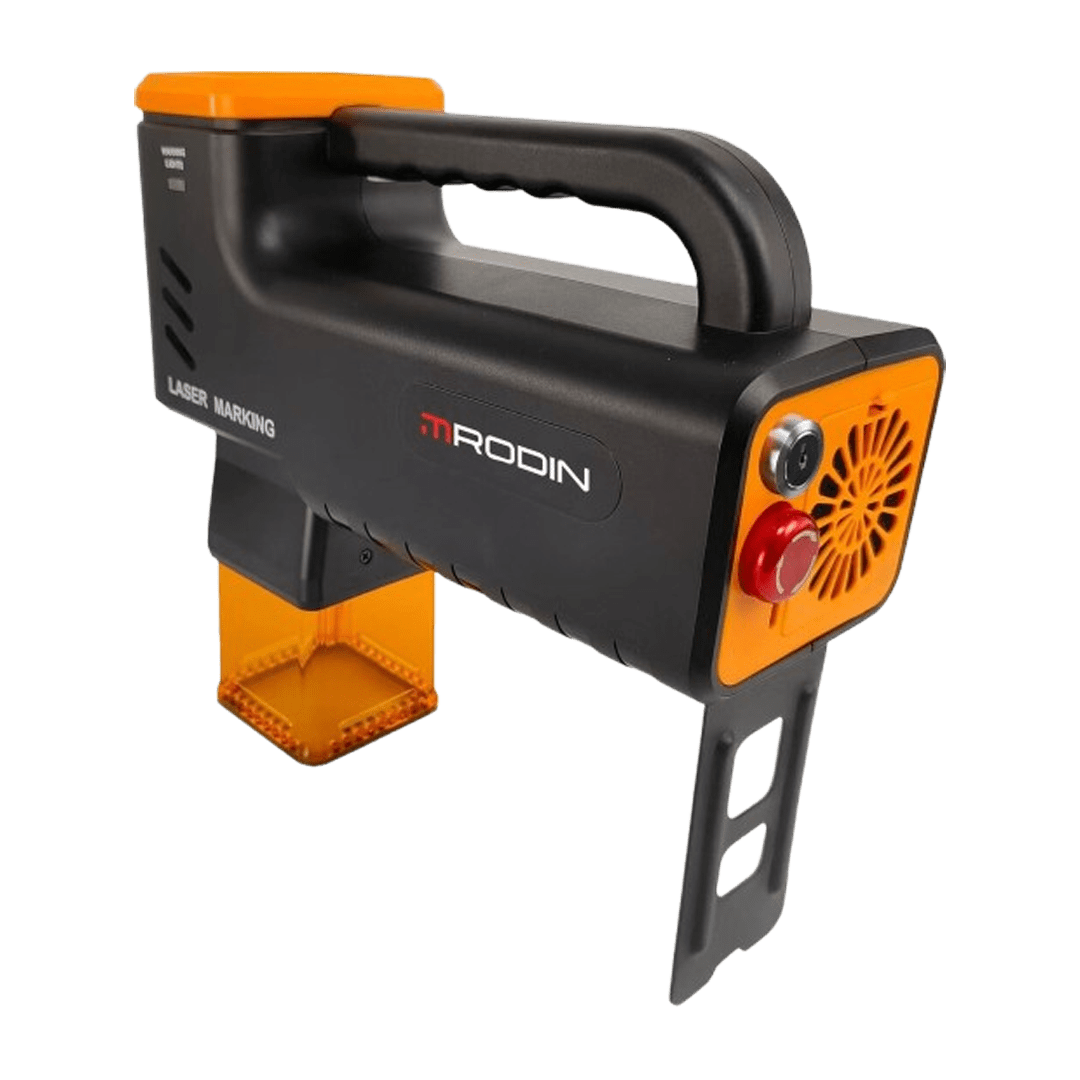

2/5W & 2/10W portable dual light laser engraver

MPDL series
Price from
3000 €
Speak to a Laser Specialist

Mobile phone connection
Compact size
Multi-material marking

MPDL's dual light means 455 nM blue light & 10554 nM red light, which can be done on a wide variety of materials, such as metal, plastic, glass, ceramic, stone, and even food. With 0.05mm spot, it ensures marking precision almost 1 times than others, an excellent alternative for different industries. Unique bracket design transforms MPDL from handheld to desktop in 1 seconds, adapts commonly power banks and mobile phone TYPE-C chargers, build-in adaptive marking parameters makes operation more concise and practical even by people without any experience and skill.

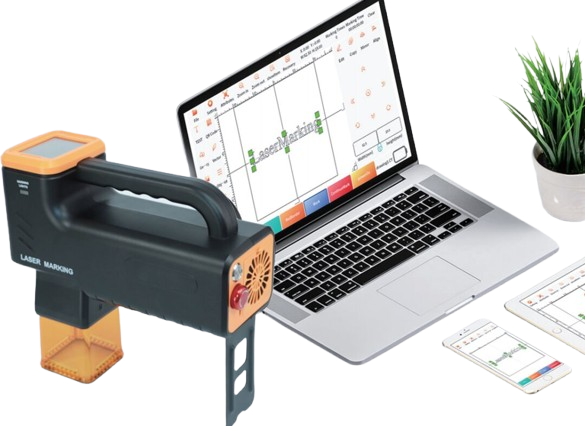

 MPDL is easy laser marker in the world which is driven by tech-Plug and play,sets up in seconds and works with smartphone, PC to transfer images,and correct power/depth, you can begin engraving with a few clicks.

Technical specifications
Specification MPDL200005 MPDL20010
Laser Source Wattage 2W + 5W 2W + 10W
Machine Power 100 W 100 W
Laser Type Pulse laser Pulse laser
Laser Wavelength 1064 nm & 455 nm 1064 nm & 455 nm
Pulse Repetition Frequency 1–4000 kHz 1–4000 kHz
Marking Depth 0.01–0.1 mm 0.01–0.1 mm
Marking Speed 4000 mm/s 4000 mm/s
Li-ion Battery Capacity 20 V – 5 A
Rechargeable Time 3–4 hours
Scan Area (Standard) 55 × 55 mm
Cooling Mode Built-in air-cooling
Focusing Method Fixed focus shell
Software RodinCAD 16 multilingual
Compatible Systems WIN10 + Android 7.0 + iPhone iOS
Electrical Parameters Li-ion battery DC20V (supports power bank)
Laser Safety Class Class 1
Package & N/G Weight Foam box 330×130×300 mm – 2 / 3.5 kg
