Laser marking

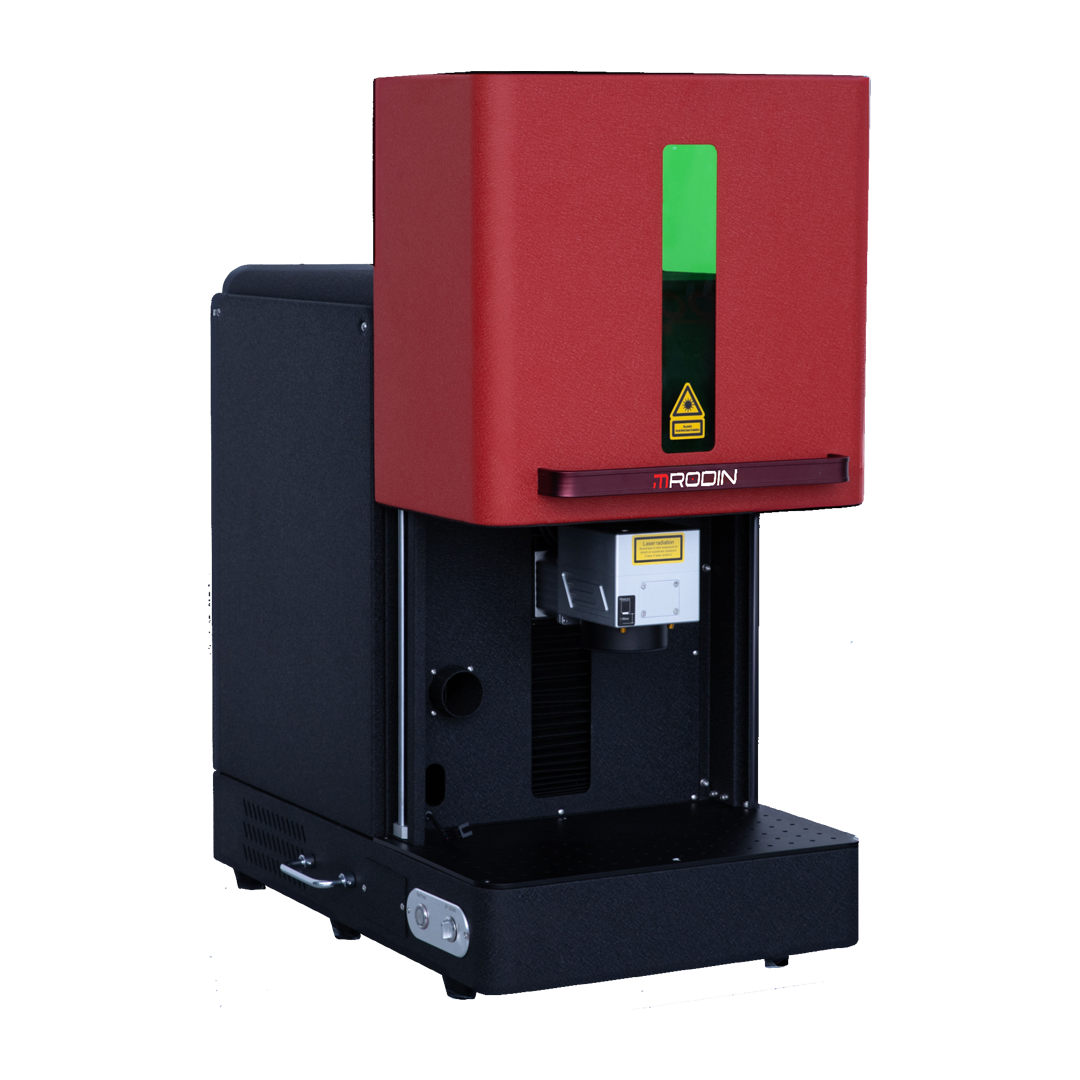

30 & 60W MOPA enclosed desktop fiber laser marker

MDFE series MOPA
Price from
9400 €
Speak to a Laser Specialist

Industrial durability
Affordable service
Troubleshooting guide

In support of small businesses, we have compact MDFE series machine built specifically for small-scale production. These models can customize markings on accessories, notebooks, mugs, key chains, souvenirs, collectibles, and various gift items, adding a special touch to any product. MRodin's MDFE series laser marking machines were designed under the most demanding criteria to provide a suitable response to all kinds of laser marking needs, using advanced technology to guarantee the best and most efficient results. The MDFE series MOPA allows for precise control of laser pulses, including pulse width and frequency, which enables targeted processing of a variety of materials. It is suitable for applications requiring specific material interaction, such as fine markings on sensitive materials or processing of highly reflective materials.

Technical specifications
Specification MDFE20030 MDFE20060
Laser Source Wattage30 W60 W
Machine Power200 W450 W
Laser TypeMOPA pulse laserMOPA pulse laser
Laser Wavelength1064 nm1064 nm
Beam QualityM²＜1.4M²＜1.5
Frequency1–4000 kHz1–4000 kHz
Marking Depth0.01–0.7 mm0.01–1 mm
Pulse Energy0.8 mJ1.5 mJ
Pulse Width2–500 ns2–500 ns
Marking Speed6000–8000 mm/s7000–9000 mm/s
Manufacture byVON JAN (Germany)
ProtectionAnti-reflection protection
Cooling ModeBuilt-in air-cooling & Air filter is optional
Focusing MethodDouble red-light manual operation (electric is optional)
SoftwareRodinCAD 16 multilingual & Lightburn is optional
Electrical Parameters110 V / 220 V Single-phase – 50 Hz
Laser Safety ClassClass 1
Package & N/G WeightWooden case 735×760×430 mm – 70/80 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
