Laser marking

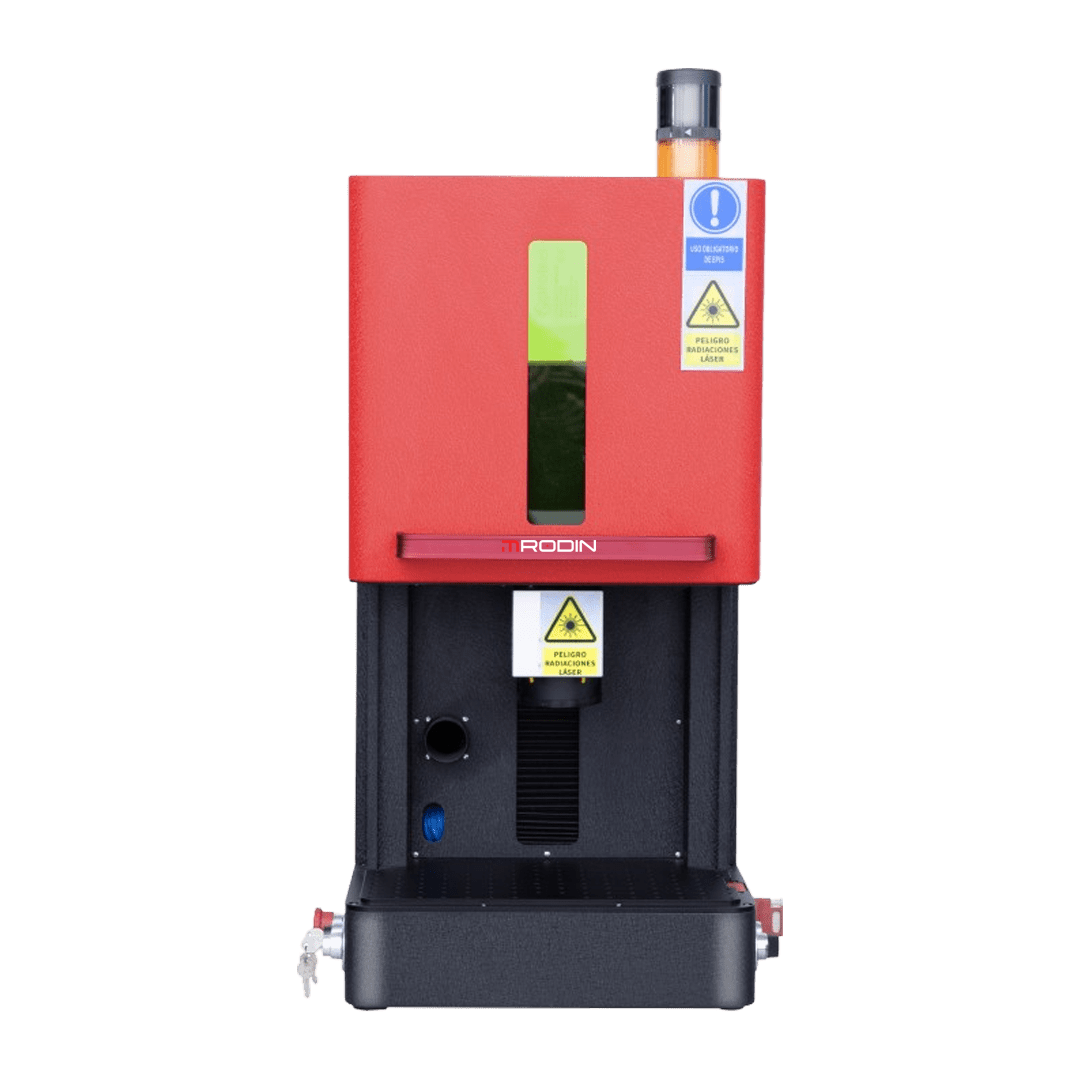

30W & 50W enclosed desktop fiber laser marker

MDFE series
Price from
7850 €
Speak to a Laser Specialist

Compactness
Comfortable
Endurance

MDFE series with a 20% smaller footprint and advanced technological coating, these units surpass most competitors in compactness, making them ideal for desktop or workbench placement. Despite their compact size, they deliver unparalleled functionality and reliability typically associated with high-end industrial lasers. Benefit from MRodin's unmatched performance while optimizing your investment for metal parts traceability with the MDFE series. Designed to fit seamlessly on most work surfaces, it's perfect for marking metals in workshops and various industrial environments. Engineered with longevity in mind, the laser source boasts an impressive 100,000 hours typical Mean Time Before Failure (MTBF), while the manual sliding door is built to handle tens of thousands of cycles with ease.

 Since safety is paramount, MRodin meticulously crafted the MDFE in compliance with international Class-1 laser safety standards. MRodin stands behind its commitment to safety by offering some of the industry's longest and most comprehensive warranties, including a standard 3-year global warranty that can be extended for additional coverage or duration.

Technical specifications
Specification MDFE10030 MDFE10050
Laser Source Wattage30 W50 W
Machine Power200 W350 W
Laser TypeQ-switch pulse laserQ-switch pulse laser
Laser Wavelength1060–1700 nm1060–1700 nm
Beam QualityM²＜1.1M²＜1.3
Pulse Repetition Frequency30–60 kHz50–170 kHz
Scan Area (Standard)110×110 mm110×110 mm
Marking Depth0.1–0.5 mm0.1–0.7 mm
Pulse Energy0.75 mJ1.1 mJ
Pulse Width80–120 ± 20 ns80–120 ± 20 ns
Marking Line Width0.01–0.3 mm0.01–0.5 mm
Marking Speed7000 mm/s9000 mm/s
Cooling ModeBuilt-in air-cooling & Air filter is optional
Focusing MethodDouble red-light manual operation (electric is optional)
SoftwareRodinCAD 16 multilingual & Lightburn is optional
Electrical Parameters110 V / 220 V Single-phase – 50 Hz
Laser Safety ClassClass 1
Package & N/G WeightWooden case 735×760×430 mm – 70/80 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
