Laser marking

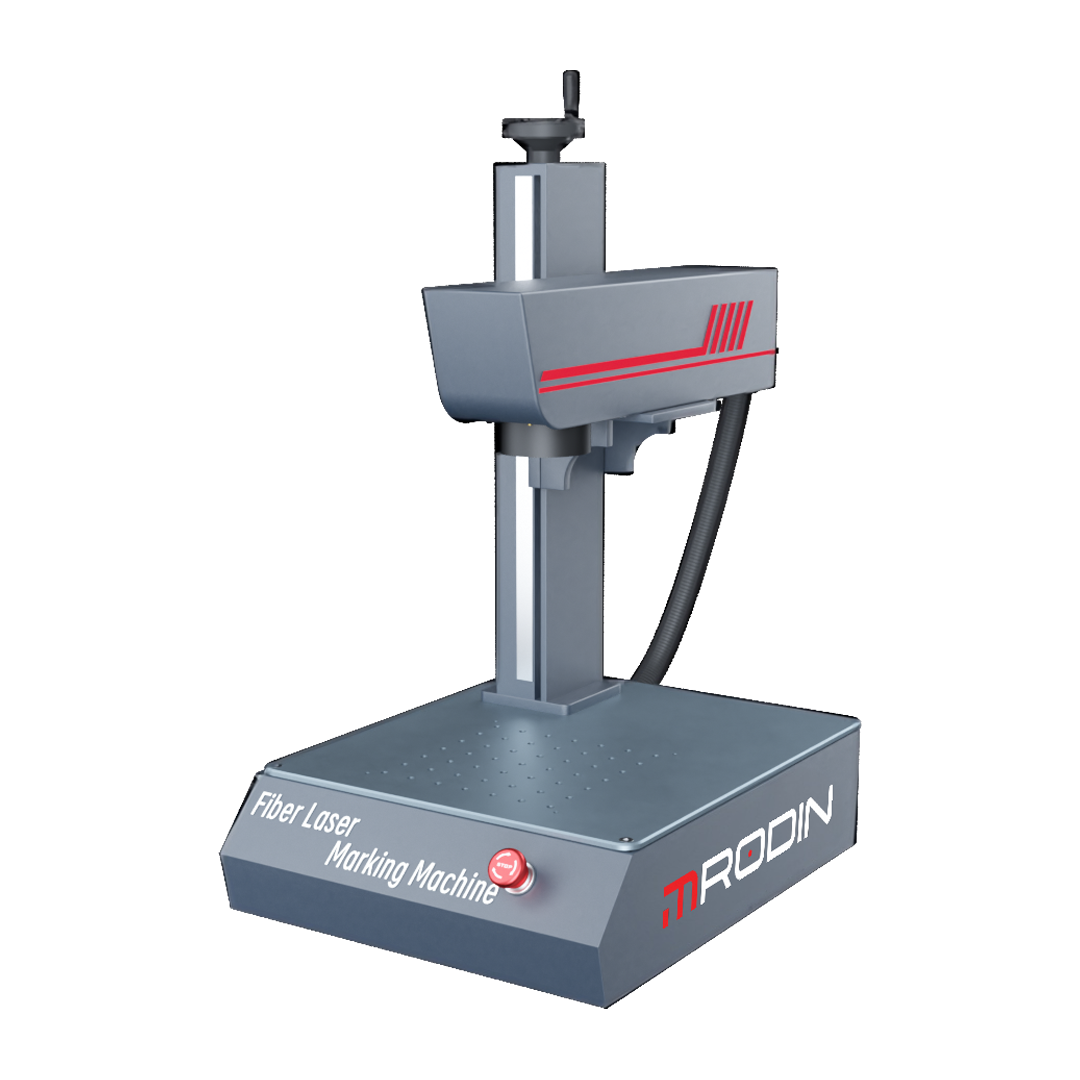

20 to 50W desktop Q-switchfiber laser marking

MDFA series
Price from
2310 €
Speak to a Laser Specialist

Functional
Affordable
User-friendly

MCFA series empowers you with enhanced flexibility in managing process parameters, enabling seamless application even on notoriously challenging high reflective metal materials. Users can effortlessly perform deep marking, delicate light removal, and do precise black-annealed marking with ease. MCFA series harnesses the full potential of fiber laser power, resulting in significant enhancements in both processing speed and quality. Unlike conventional models where single lines overlap, leading to energy loss as the laser beam traverses back and forth, this laser adopts a circular pattern approach.

Cabinet fiber laser marking machine is classified as Class IV laser equipment, equipped with extra safety features to ensure effortless and secure operation in diverse industries and work environments. MRodin highly recommends the use of laser protective goggles, covers, and safety enclosures to prioritize user safety.

Technical specifications
Especificación MDFA10020 MDFA10030 MDFA10050
Potencia de la fuente láser20 W30 W50 W
Longitud de onda del láser1064 nm1064 nm1064 nm
Frecuencia27 kHz40 kHz45 kHz
Potencia de la máquina150 W200 W350 W
Área de escaneo (estándar)110×110 mm110×110 mm170×170 mm
Profundidad de marcado0.1–0.2 mm0.1–0.3 mm0.1–0.5 mm
Energía de pulso0.7 mJ0.75 mJ1.1 mJ
Ancho de pulso90 ± 10 ns100 ± 20 ns100 ± 10 ns
Ancho de línea de marcado0.01–0.2 mm0.01–0.3 mm0.01–0.5 mm
Velocidad de marcado5000 mm/s7000 mm/s9000 mm/s
Modo de refrigeraciónRefrigeración por aire integrada (opcional con filtro)
Método de enfoqueDoble punto rojo manual (opcional eléctrico)
SoftwareRodinCAD 16 multilingüe (Español / Inglés)
Parámetros eléctricos110 V / 220 V monofásico – 50 Hz


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
