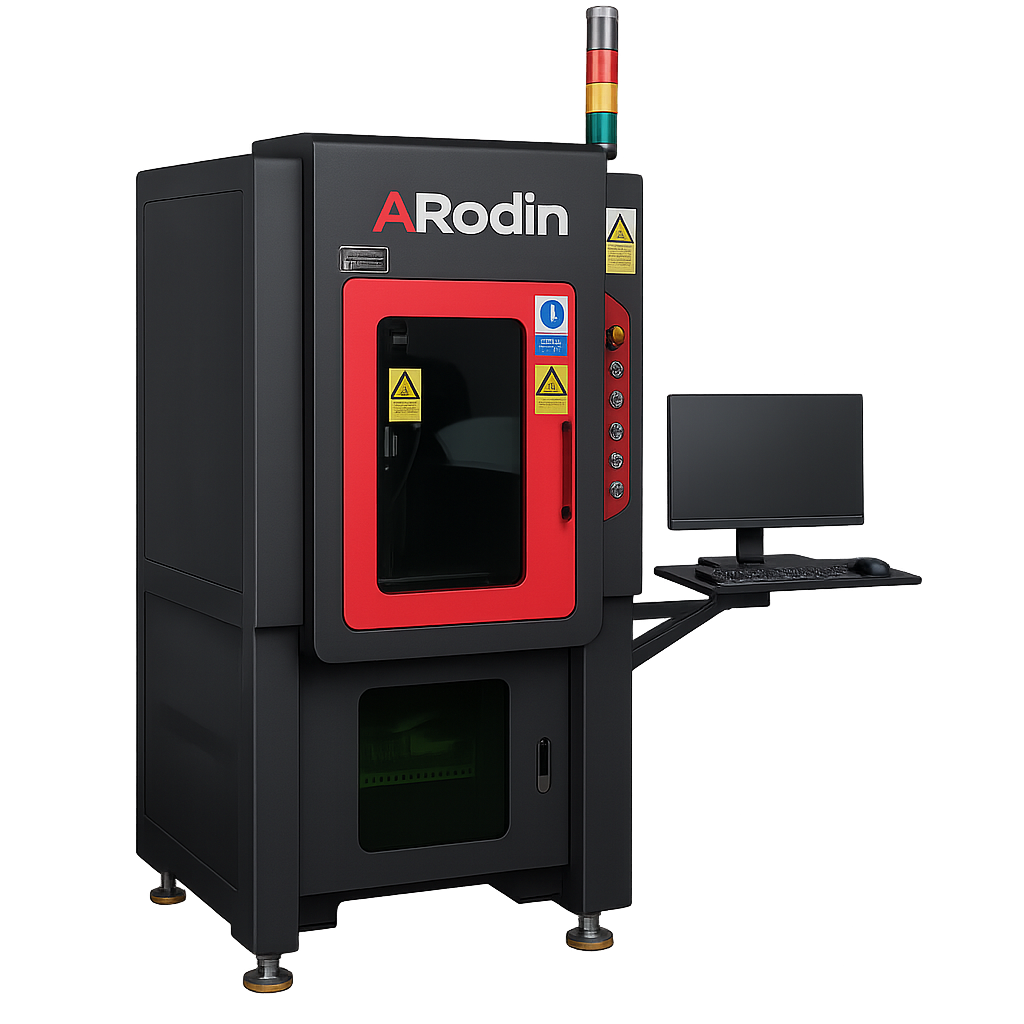

30 to 200W MOPA enclosed cabinet fiber laser marking workstation

Price from
12400

Contact-free
Precision
Personification

MCFE series MOPA galvo fiber laser marking workstation is designed to be the premier high-speed marking solution for small to medium sized products to streamline production, reduce turn-around times and expand product offering with. The MOPA laser source adapted on MCFE is high-precision laser marker capable of marking black on aluminum and color on stainless steels. As one of the most feature-rich, MCFE series is laser safety standard Class 1. MRodin is the first brand to incorporate KEYENCE's safety measures into our laser machines. Add priceless value to your existing products with custom markings, the MCFE series MOPO fiber laser marking workstation is ideal for engraving and marking on materials such as stainless steel, aluminum, granite, plastics and more.

Technical specifications
Especificación MCFE20030 MCFE20060 MCFE20100
Laser Source Wattage30 W60 W100 W
Machine Power200 W450 W600 W
Laser Wavelength1064 nm1064 nm1064 nm
Beam QualityM²<1.4M²<1.5M²<1.6
Frequency1–4000 kHz1–4000 kHz1–4000 kHz
Marking Depth0.01–0.7 mm0.01–1 mm0.01–2 mm
Pulse Energy0.8 mJ1.5 mJ2 mJ
Pulse Width2–500 ns2–500 ns2–500 ns
Marking Speed6000–8000 mm/s7000–9000 mm/s7000–10000 mm/s
ManufactureVON JAN (Alemania)
ProtectionProtección antirreflejo y haz rojo integrado
Cooling ModeRefrigeración por aire integrada (filtro opcional)
Focusing MethodDoble punto rojo manual (opcional eléctrico)
SoftwareRodinCAD 16 – Multilingüe (Español / Inglés)
Electrical Parameters110 V / 220 V monofásico – 50 Hz
Package & N/G WeightCaja de madera 1730×1100×970 mm – 270/310 kg
Slogan
Your Safety is Our Mission
Key Features
Contact-free
Precision
Personification
Family
MCFE series MOPA


Need to mark your parts but don’t have a laser marking machine yet? No problem!

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
