Laser marking

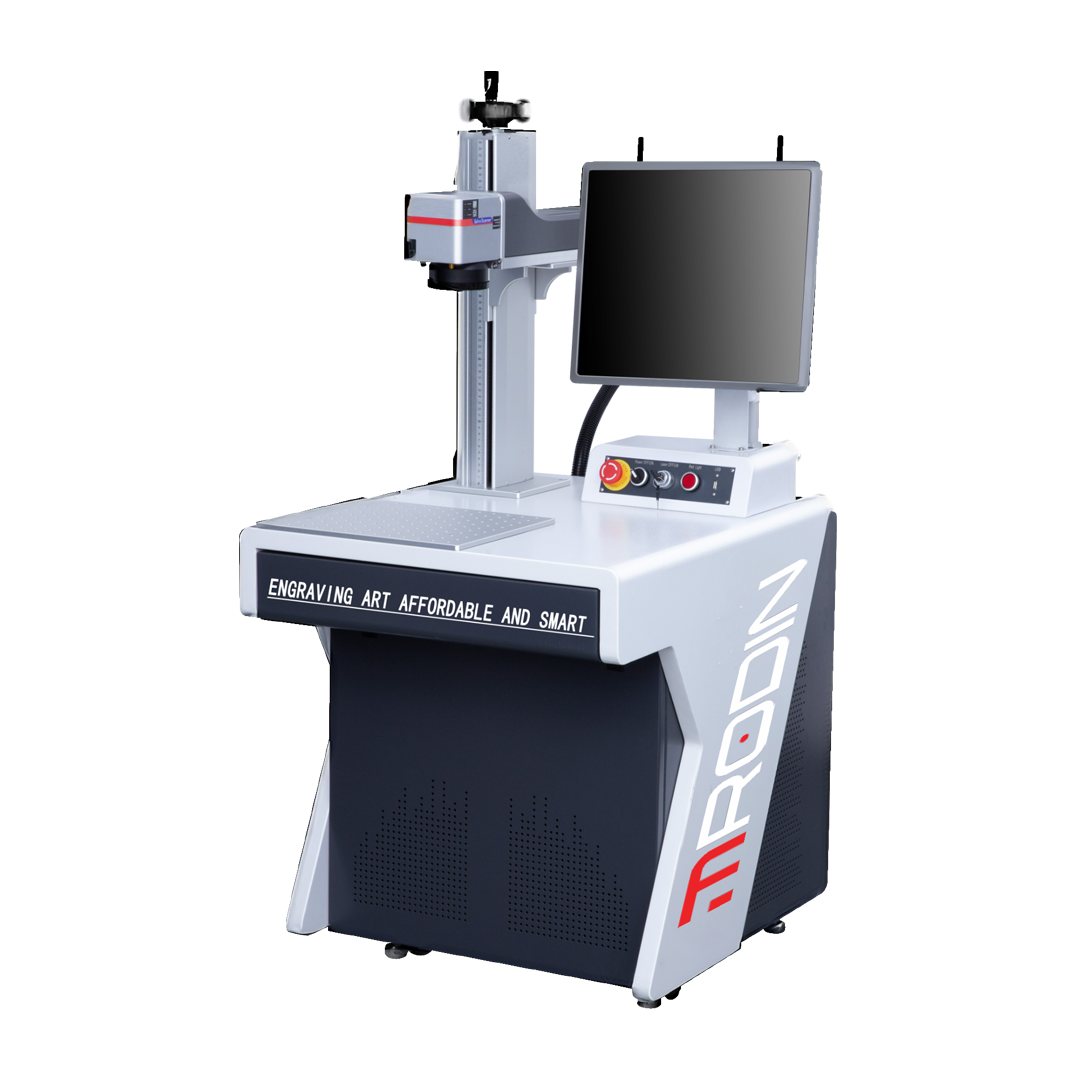

5W & 10W cabinet UV laser marking system water-cooling

MCUA series
Price from
6750 €
Speak to a Laser Specialist

Damage-Free
Cold-Marking
Small Spot Diameter

MCUA series uses ultraviolet light of 355 nM wavelength to mark materials, the 355 nm beam breaks down bonds directly using a photolytic degradation process, it is known as “cold marking” because it does not burn surface areas and uses minimal heat stress. MCUA is easy marking on sensitive materials like plastics,glass,resin and very thin metal. The MCUA series is used in a wide variety of applications and sector, such as product identification, traceability in industry, marking tools, and engraving plates with characteristics.

The MCUA series UV laser marking machine will open up a world of possibilities for customizing paper and cardboard,paper products are extremely versatile. special events like weddings, baby showers, and engagement parties often require personalized paper products like invitations.

Technical specifications
Specification MCUA10005 MCUA10010
Laser Source Wattage5 W10 W
Machine Power500 W800 W
Laser Wavelength355 nm355 nm
Beam QualityM²＜1.2M²＜1.2
Pulse Width﹤15 ns @ 40 kHz﹤15 ns @ 40 kHz
Max. Pulse Energy0.17 mJ @ 30 kHz0.3 mJ @ 30 kHz
Beam-pointing Stability＞90%＞90%
Operating Voltage110–240 V / 50–60 Hz / 15 A110–240 V / 50–60 Hz / 15 A
Marking Speed6000–8000 mm/s7000–9000 mm/s
Marking Area110×110 mm standard – 170×170/200×200 optional

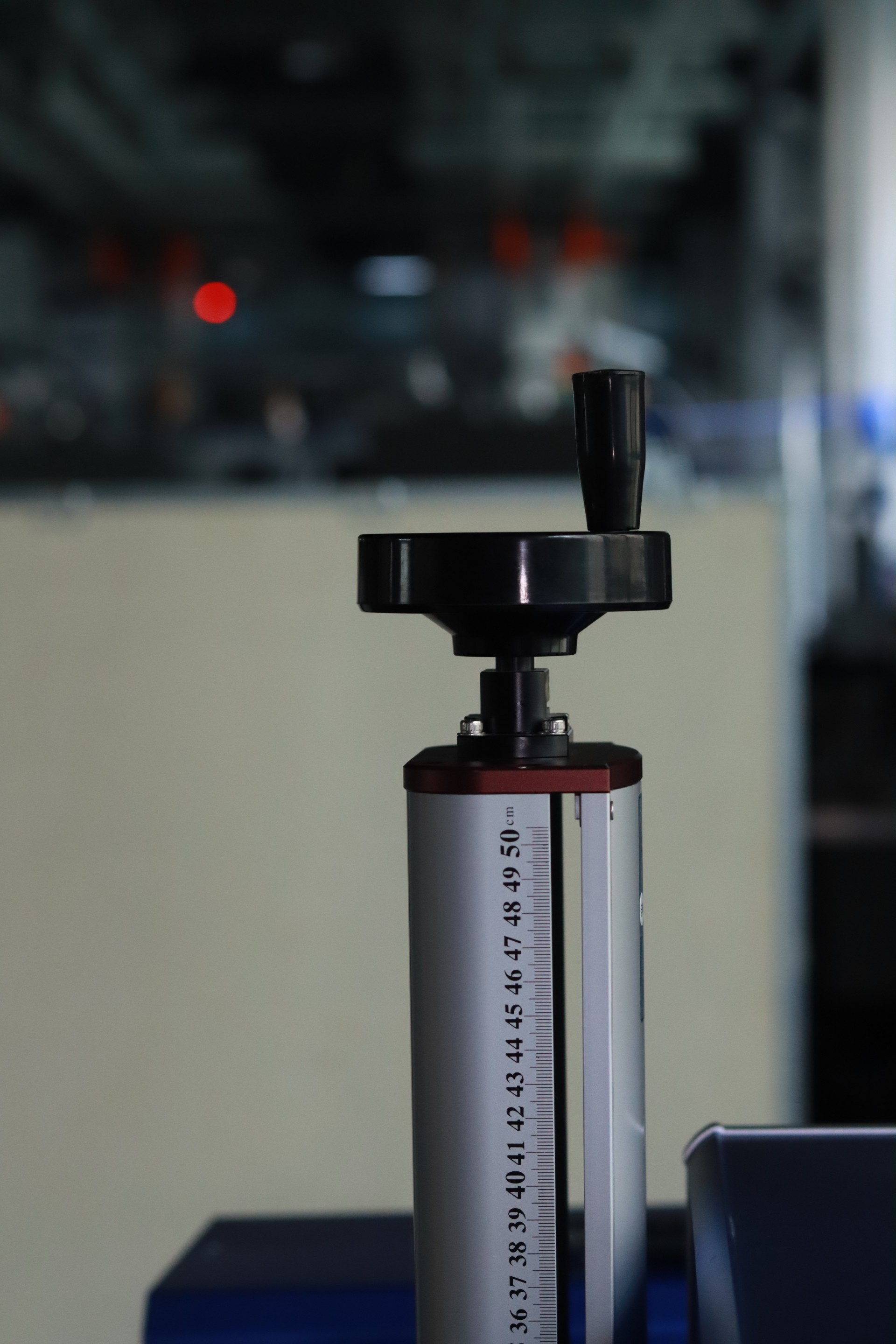

Focusing MethodDouble red-light manual focus
CoolingExternal water cooling
Ambient Temperature15–30 ℃
Ambient Humidity20–80% non-condensing
SoftwareRodinCAD 16 multilingual & Lightburn is optional
Electrical Parameters110 V / 220 V Single-phase – 50 Hz
Package & N/G WeightWooden case 1300×750×900 mm – 125/130 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
