Laser marking

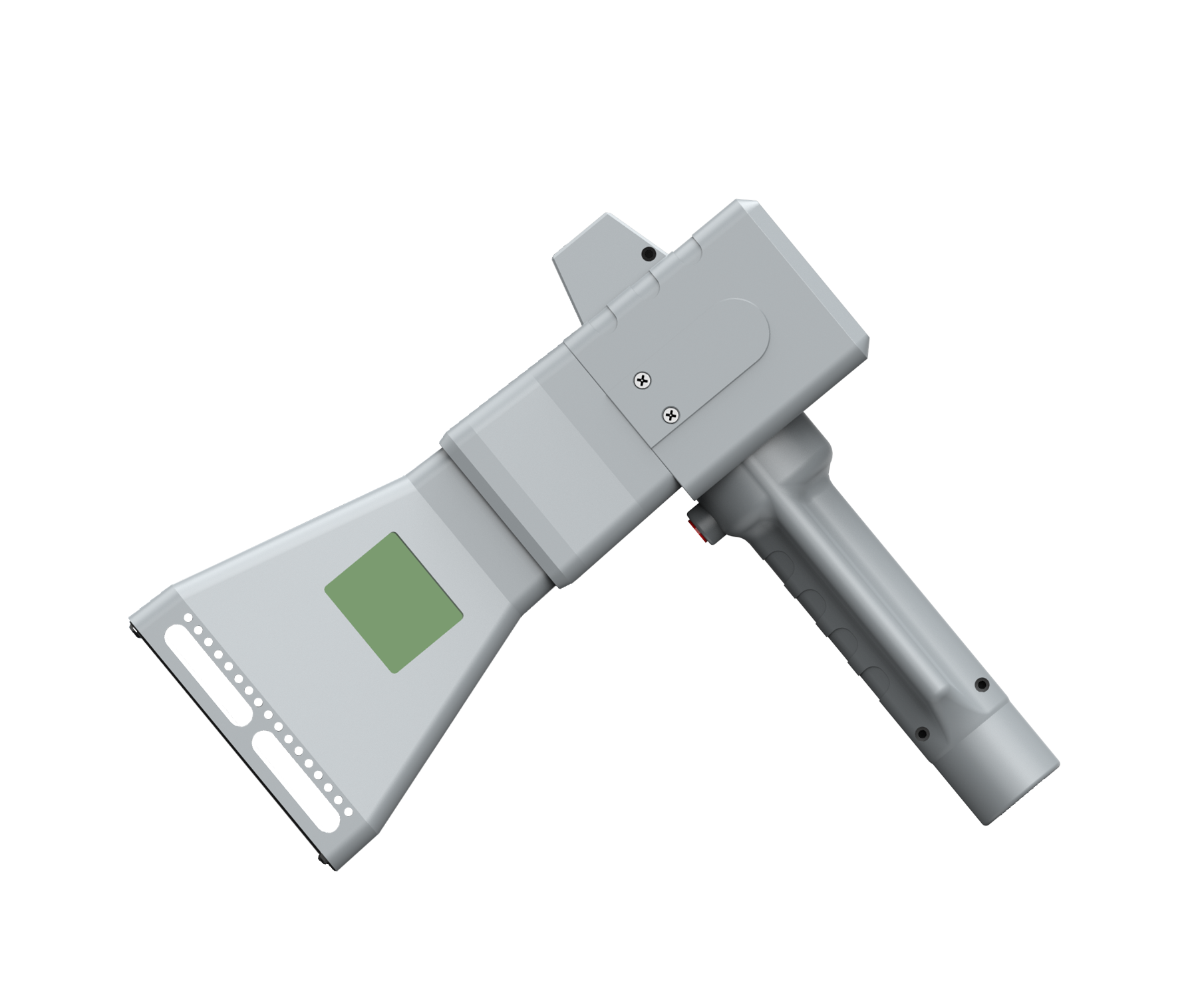

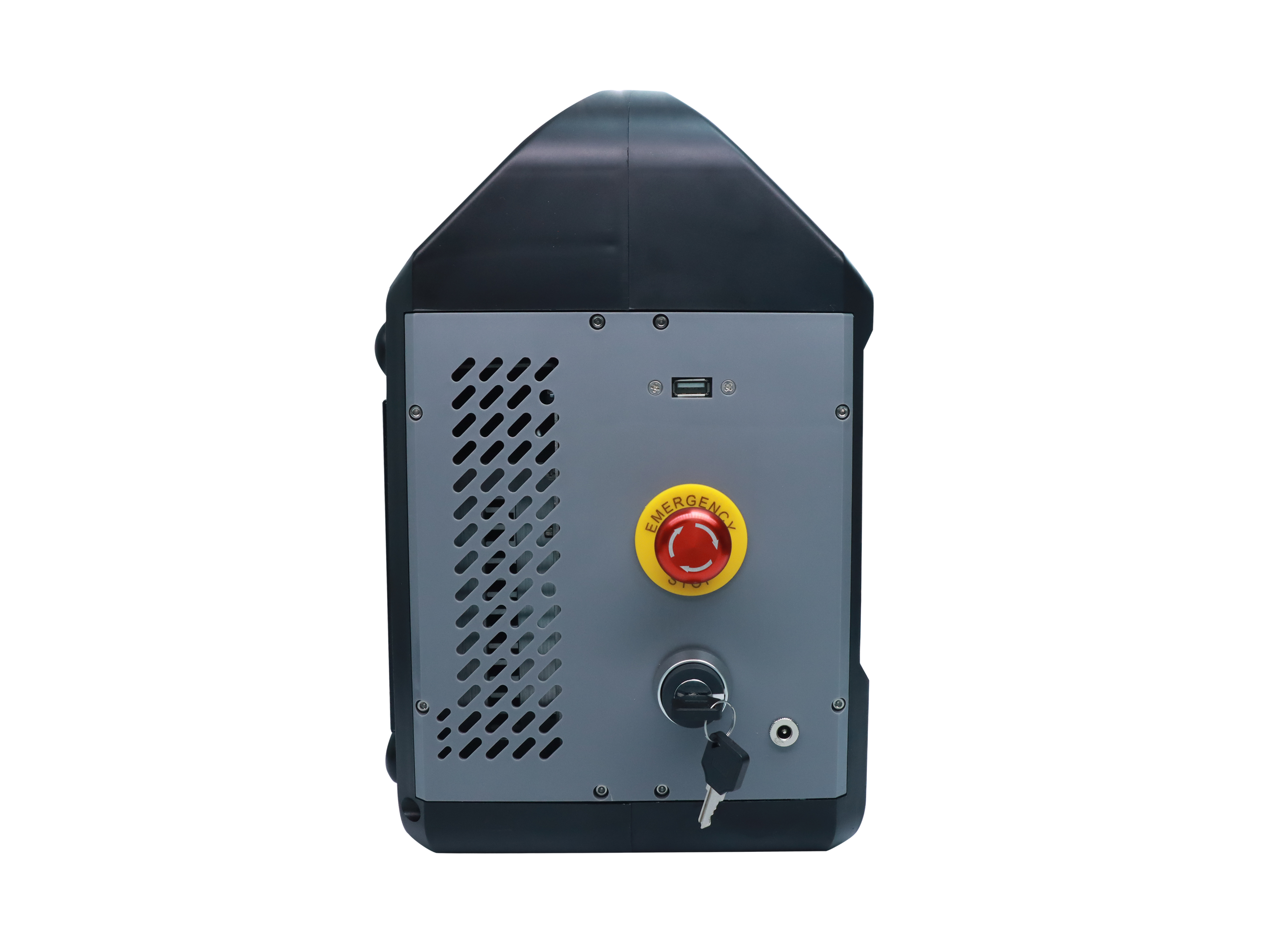

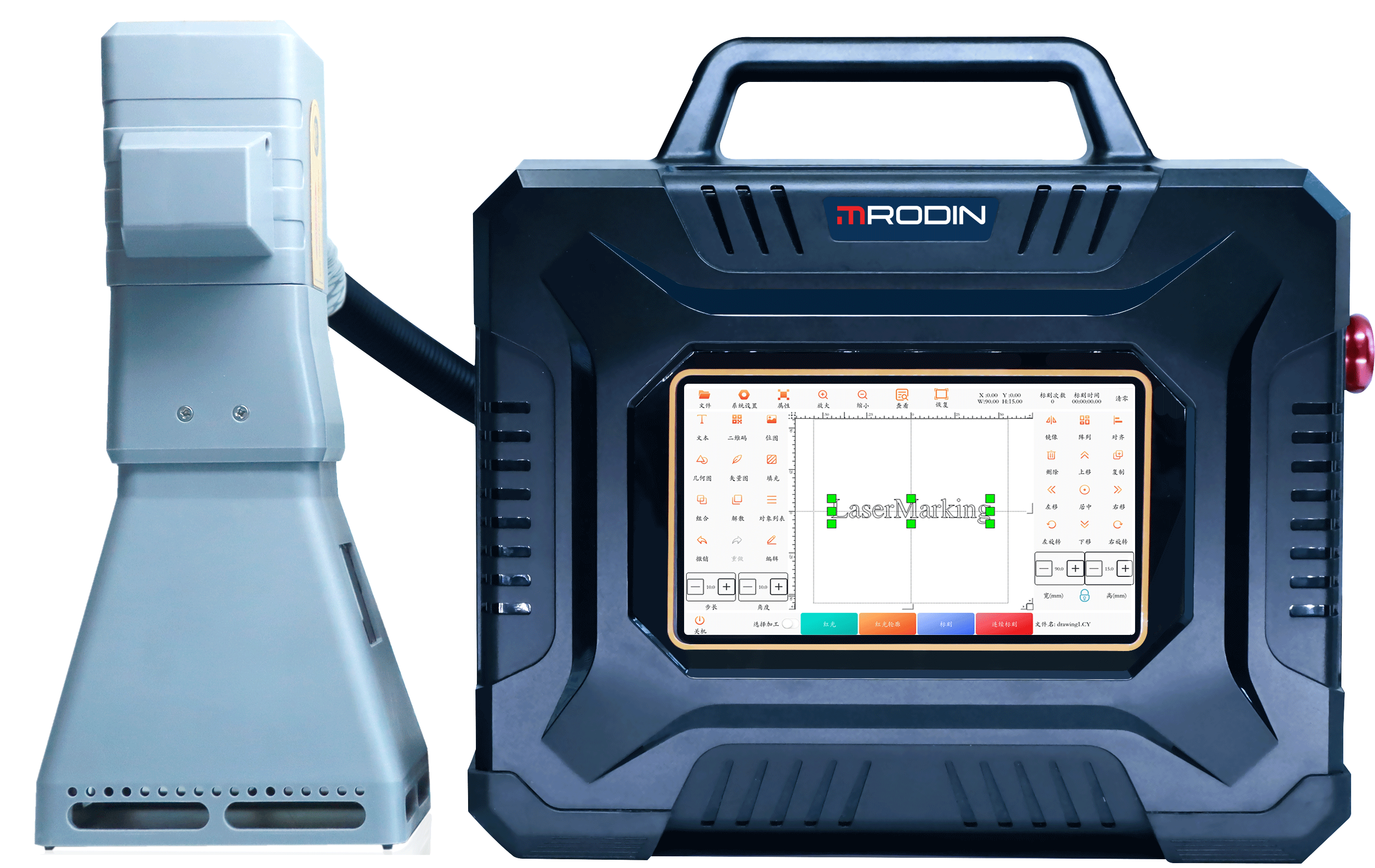

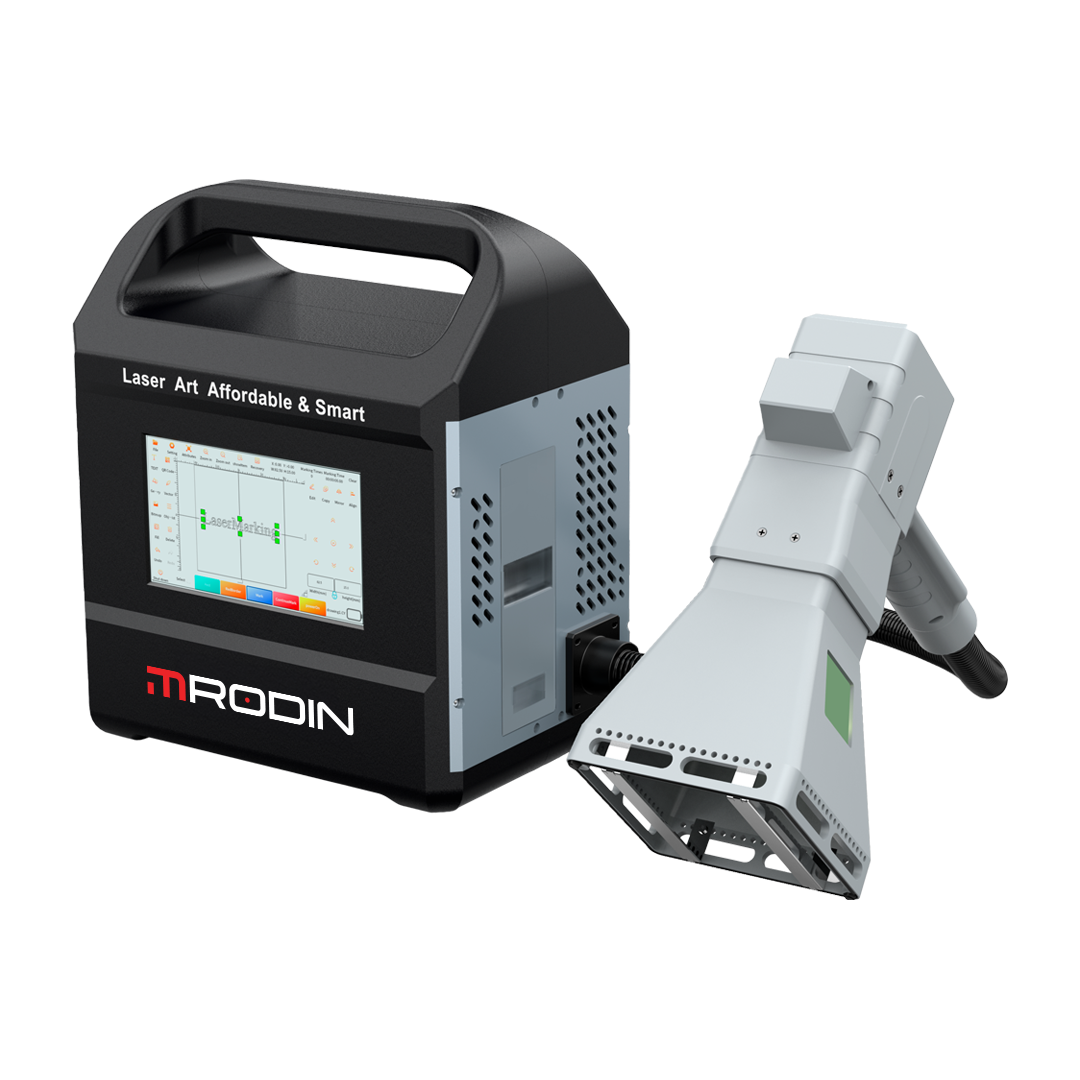

25W & 50W handheld fiber laser marking li-ion battery rechargeable

MHFL series
Price from
4000 €
Speak to a Laser Specialist

Outdoor use Power-free Rechargeable

Engraving granite and marble items can be one of the most fulfilling ways to use a powerful MHFL series to meet your customer's emotional needs. Granite lends itself beautifully to high-resolution photo etching. Personalize touching tribute memorials that help heal, turn bathroom tiles into works of art, or customize a stepping stone for Mother’s Day. MHFL's laser marking technique with fibre can be used on different materials, mainly metals and certain plastics, including steel, aluminium, copper, iron, brass, and Zamak.

The Optional MHFC series is a handheld fiber laser marking machine that comes equipped with a 15AH lithium battery. With just a 2-hour charge, it offers an impressive 6 hours of uninterrupted marking capability. Experience unparalleled freedom of movement without any restrictions imposed by power sources.

Technical specifications
Specification MHFL10025 MHFL10050
Laser Source Wattage25 W50 W
Machine Power135 W200 W
Laser TypeQ-switch fiber laserQ-switch fiber laser
Laser Wavelength1060–1700 nm1060–1700 nm
Beam QualityM²＜1.5M²＜1.6
Pulse Repetition Frequency40–60 kHz45–170 kHz
Pulse Energy0.6 mJ1.1 mJ
Scan Area (Standard)100×100 mm100×100 mm
Min. Marking Line Width0.01 mm0.01 mm
Marking Speed≤7000 mm/s≤7000 mm/s
Li-ion Battery Capacity15 AH
Rechargeable Time2–3 hours
Focusing MethodFixed focus
Cooling ModeBuilt-in air-cooling
SoftwareRodinCAD 16 multilingual
Operation ComputerBuilt-in system with touch screen
Electrical ParametersAC90V–AC250V
Laser Safety ClassClass 1
Package & N/G WeightPVC case 700×520×270 mm – 7/8 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
