SYSTEM SPECIFICATIONS

Download technical specs
Laser marking

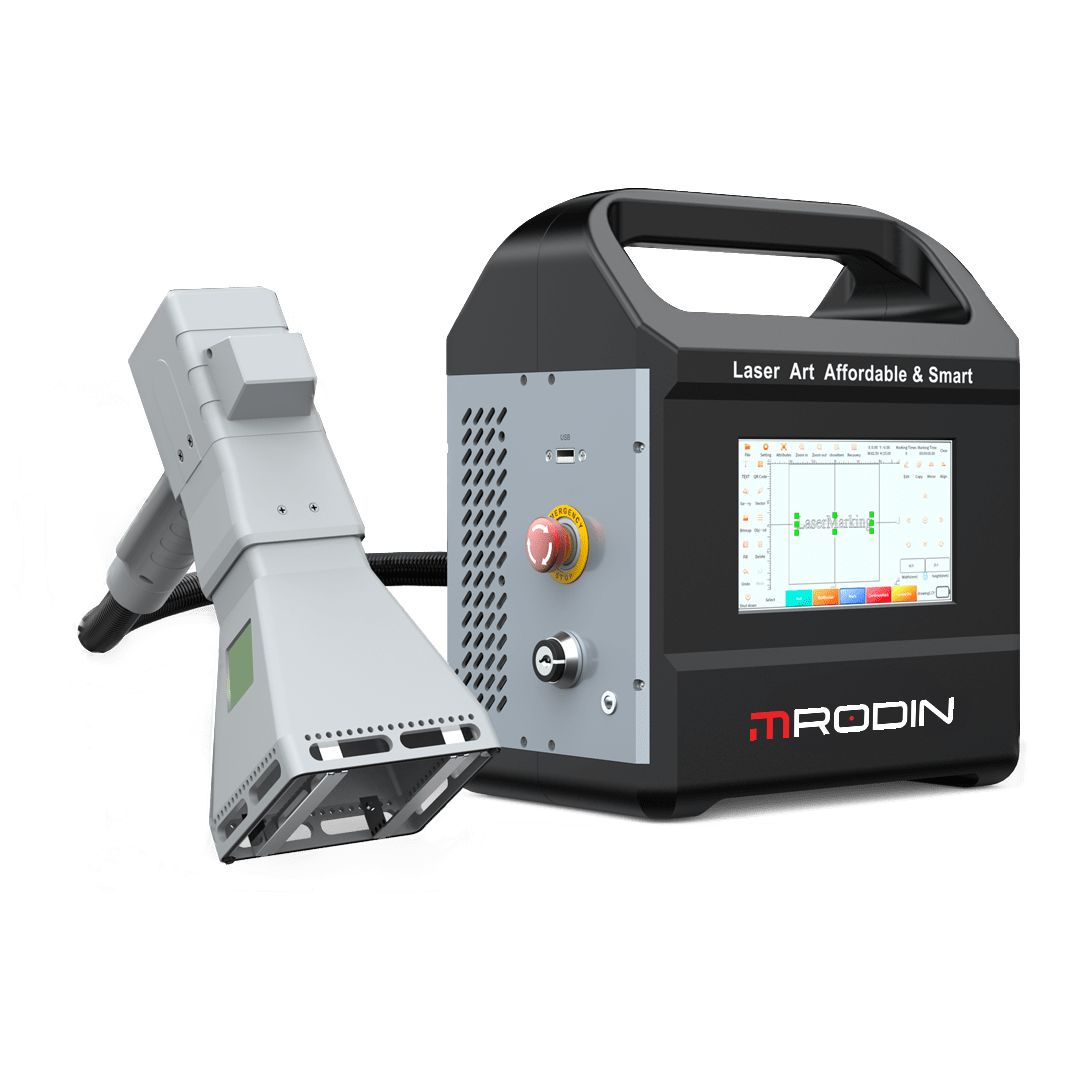

25W & 50W handheld fiber laser marking plug-in

MHFC series
Price from
3500 €
Speak to a Laser Specialist

Mobile to delivery
Safe to operate
Fixed focus to mark

The MHFC series is distinguished not only by its advanced marking technology and exceptional flexibility, but also by its provision of mobile and rechargeable solutions. MRodin has curated several recommendations for optimizing your processes, resulting in savings in logistics, consumption costs, and enhanced production efficiency. The MHFC series distinguishes itself as an exceptional machine renowned for its state-of-the-art protective technologies curated by MRodin. With a patented protection solution, it ensures highly efficient and long-lasting marking capabilities. The unique shell design effectively prevents laser leakage, while the contact sensor promptly deactivates the laser when leaving the marking work piece.

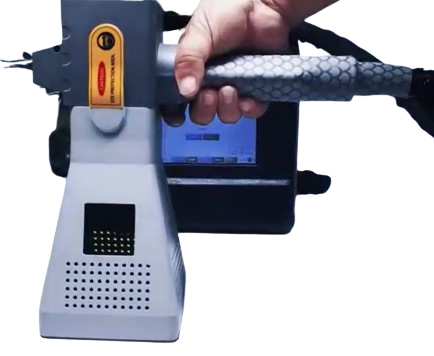

The MHFC series distinguishes itself as an exceptional machine renowned for its cutting-edge protective technologies curated by MRodin. With a patented protection solution, it ensures unique shell design can effectively prevent laser leakage, 2 contact sensor quickly turns off the laser when leaving the marking work piece, fixed focus technology avoids accidental injuries.

Technical specifications
Specification MHFC10025 MHFC10050
Laser Source Wattage25 W50 W
Machine Power135 W200 W
Laser TypeQ-switch fiber laserQ-switch fiber laser
Laser Wavelength1060–1700 nm1060–1700 nm
Beam QualityM²＜1.5M²＜1.6
Pulse Energy0.6 mJ1.1 mJ
Pulse Repetition Frequency40–60 kHz45–170 kHz
Scan Area (Standard)100×100 mm100×100 mm
Min. Marking Line Width0.01 mm0.01 mm
Marking Speed≤7000 mm/s≤7000 mm/s
Focusing MethodFixed focusFixed focus
Cooling ModeBuilt-in air-cooling

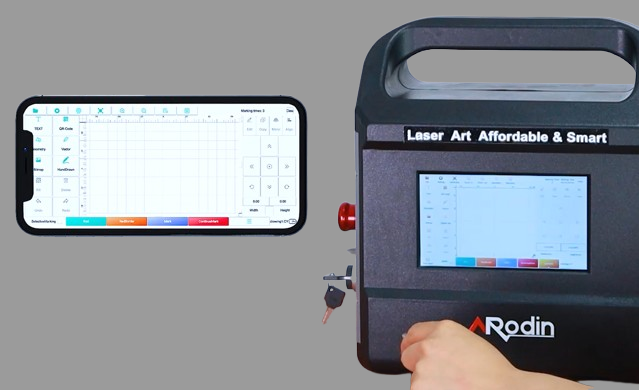

SoftwareRodinCAD 16 multilingual

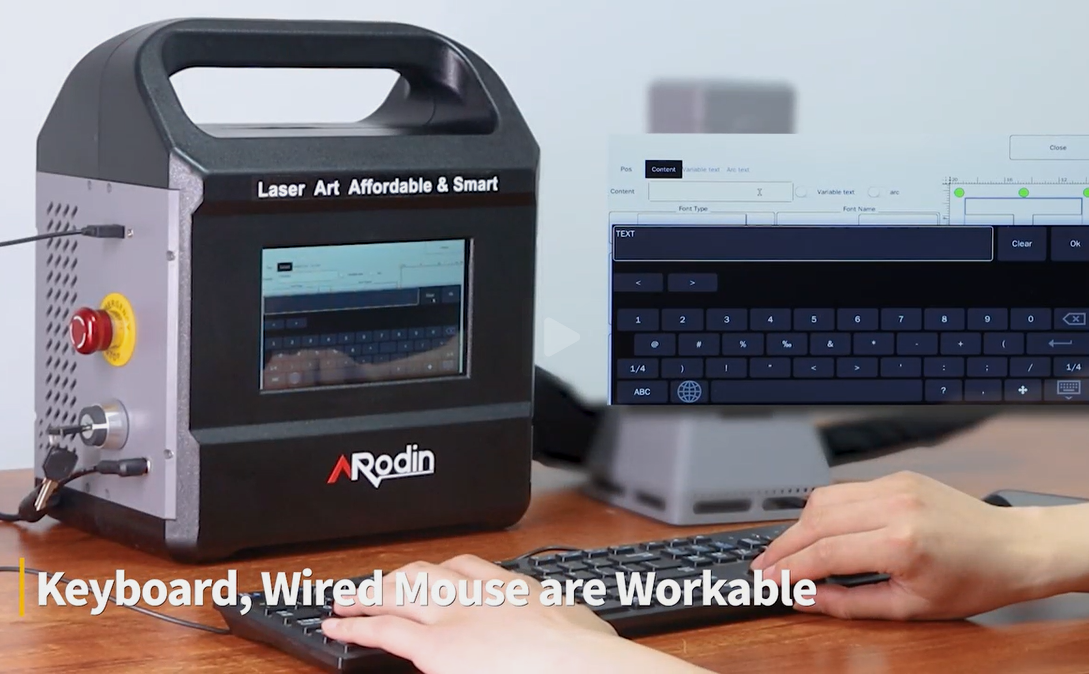

Operation ComputerBuilt-in system with touch screen
Electrical ParametersAC90 V – AC250 V
Laser Safety ClassClass 1

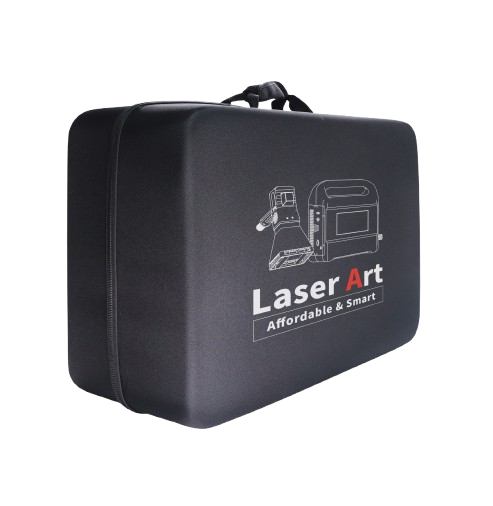

Package & N/G WeightPVC case 700×520×270 mm – 7/8 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
