Laser marking

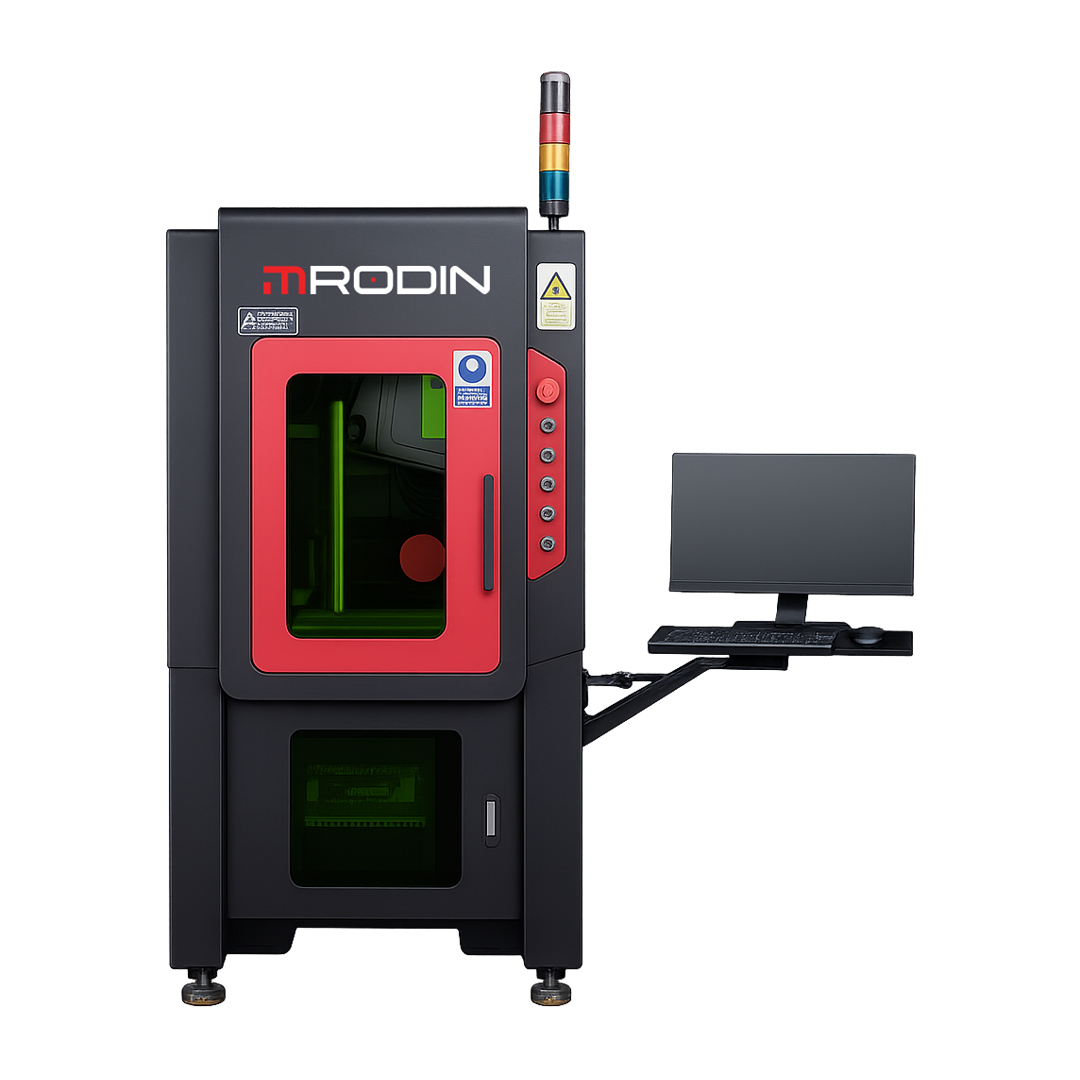

30 to 200W enclosed cabinet Q-swtich fiber laser marking workstation

MCFE series
Price from
9100 €
Speak to a Laser Specialist

Durability
Heavy Duty
True Endurance

The MCFE series is designed for performance-critical companies, providing a high-end industrial solution built to withstand the demands of challenging environments. The MCFE workstation is engineered for exceptional durability, with a remarkable lifespan of up to 100,000 hours typical MTBF (mean time before failure). Additionally, the door is meticulously designed to withstand tens of thousands of cycles.

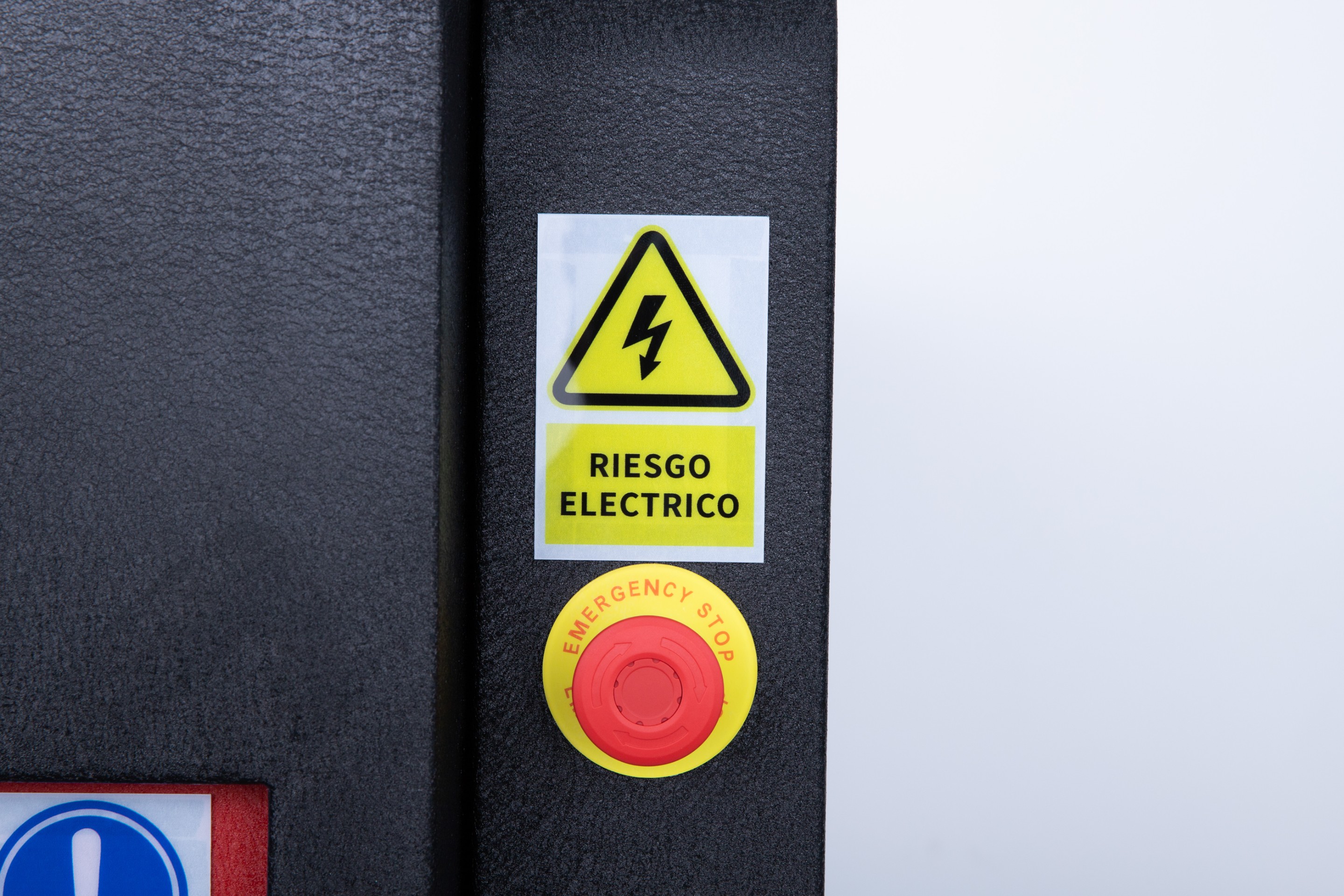

MCFE series is configured and tested in the EU to the highest standards as Class 1. We choose very high grade safety components from KEYENCE and EUCHNER with CE, RoHS and FDA regulations, MRodin is the fast manufacturer to incorporate with them in the laser industry.

Technical specifications
Specification MCFE10030 MCFE10050
Laser Source Wattage30 W50 W
Laser Source TypeQ-Switch fiber laserQ-Switch fiber laser
Laser Wavelength1064 nm1064 nm
Frequency40 kHz45 kHz
Machine Power200 W350 W
Scan Area (Standard)110×110 mm110×110 mm
Marking Depth0.1–0.3 mm0.1–0.5 mm
Pulse Energy0.75 mJ1.1 mJ
Pulse Width100 ± 20 ns100 ± 10 ns
Marking Line Width0.01–0.05 mm0.01–0.05 mm
Marking Speed5000 mm/s7000 mm/s
Cooling ModeBuilt-in air cooling (air filter optional)

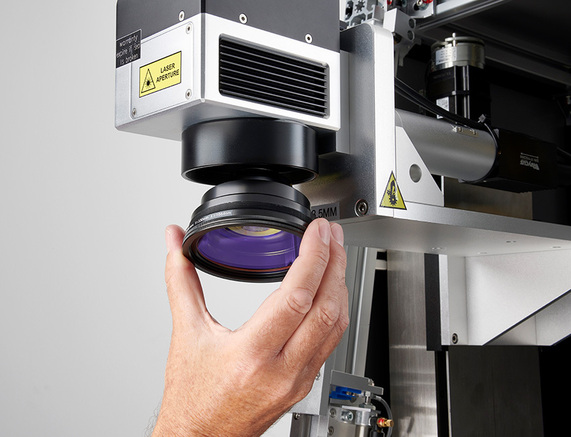

Focusing MethodManual double red-light (electric optional)
SoftwareRodinCAD 16 multilingual (Spanish / English)
Electrical Parameters110 V / 220 V single-phase – 50 Hz
Package Weight & SizeWooden case – 1730×1100×970 mm – 270/310 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.
