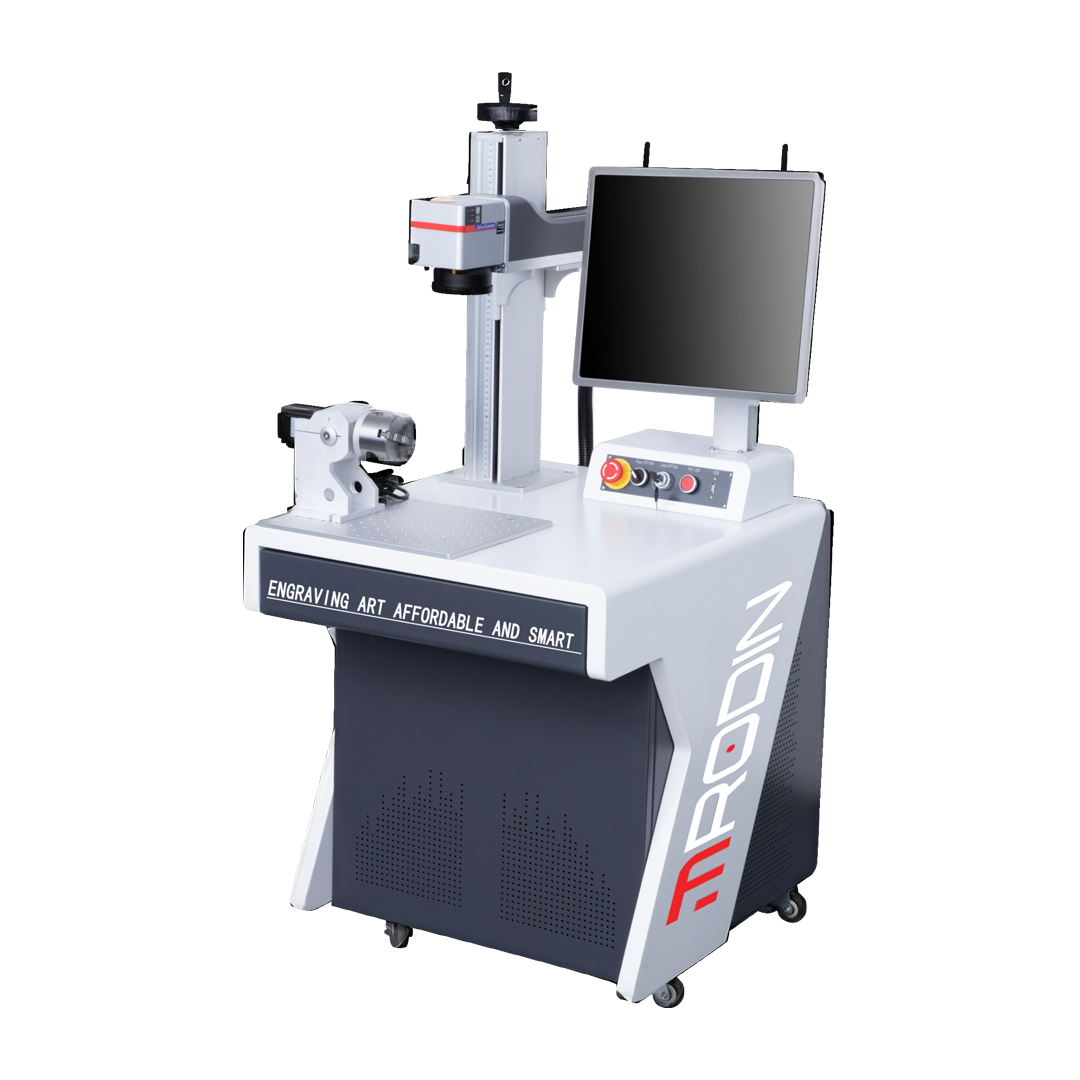

30 to 300W cabinet Q-switch fiber laser marking machine

Price from
3400

Respect
Support
Inspire your job

MCFA series harnesses the full potential of fiber laser power, resulting in significant enhancements in both processing speed and quality. Unlike conventional models where single lines overlap, leading to energy loss as the laser beam traverses back and forth, this laser adopts a circular pattern approach. This technique creates thick characters while maintaining concentrated energy, thereby ensuring high-quality annealing surpassing traditional methods.

Cabinet fiber laser marking machine is classified as Class IV laser equipment, equipped with extra safety features to ensure effortless and secure operation in diverse industries and work environments. MRodin highly recommends the use of laser protective goggles, covers, and safety enclosures to prioritize user safety.

Technical specifications
Specification MCFA10020 MCFA10030 MCFA10050 MCFA10100
Laser Source Wattage20 W30 W50 W100 W
Laser Wavelength1064 nm1064 nm1064 nm1064 nm
Frequency27 kHz40 kHz45 kHz65 kHz
Machine Power150 W200 W350 W600 W
Scan Area (Standard)110×110 mm110×110 mm170×170 mm200×200 mm
Marking Depth0.1–0.2 mm0.1–0.3 mm0.1–0.5 mm0.1–1 mm
Pulse Energy0.7 mJ0.75 mJ1.1 mJ1.1 mJ
Pulse Width90 ± 10 ns100 ± 20 ns100 ± 10 ns170 ± 20 ns
Marking Line Width0.01–0.2 mm0.01–0.3 mm0.01–0.5 mm0.01–0.5 mm
Marking Speed5000 mm/s7000 mm/s9000 mm/s10000 mm/s
Cooling ModeBuilt-in air cooling
Focusing MethodManual double red-light (electric optional)
SoftwareRodinCAD 16 multilingual (Spanish / English)
Electrical Parameters110 V / 220 V single-phase – 50 Hz
Package Weight & SizeWooden case – 1730×1100×970 mm – 270/310 kg
