Cleaning laser

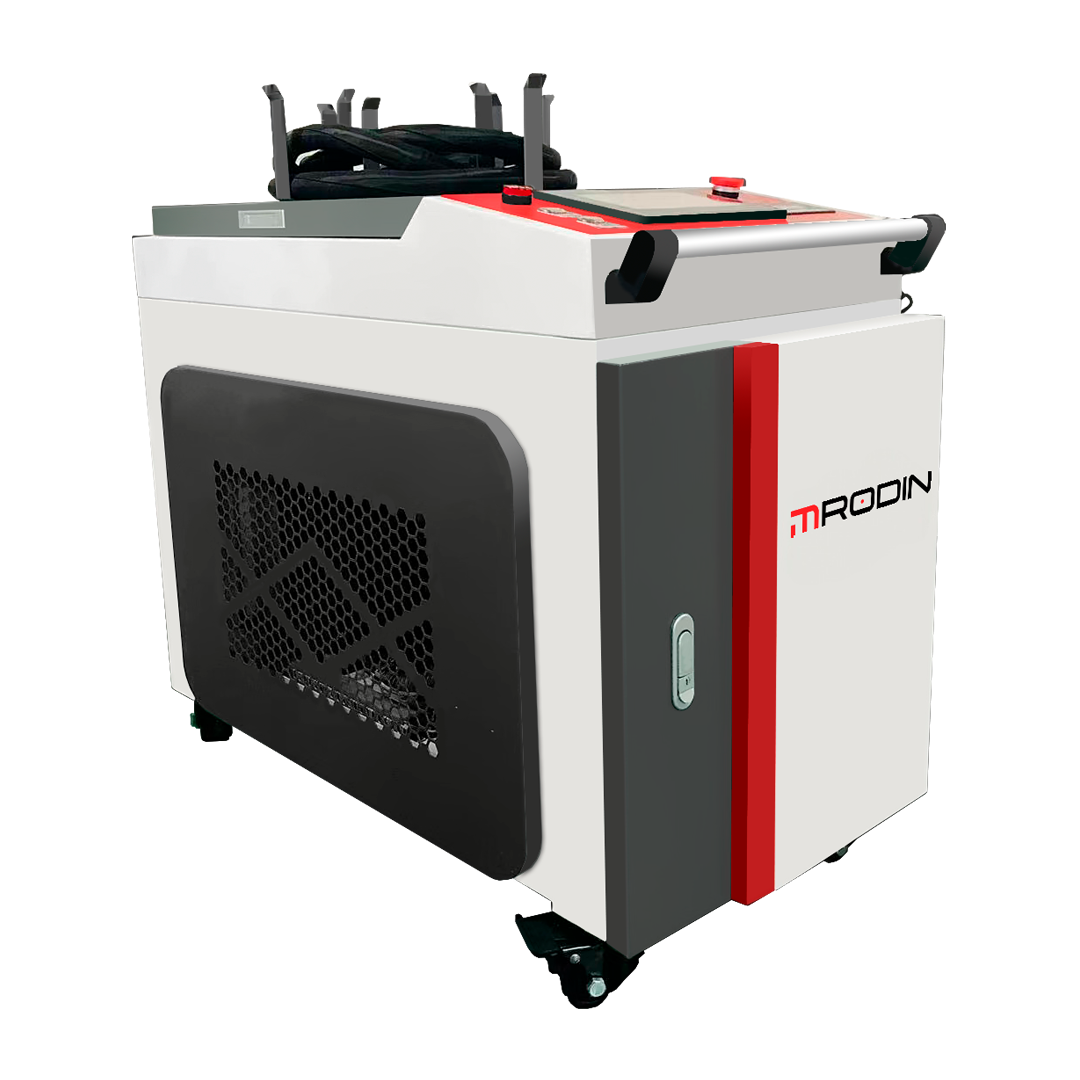

1500 to 3000W handheld mobile wobble CW laser cleaning machine

FLCA wobble series
Price from
9200 €
Speak to a Laser Specialist

Paint Removal
Corrosion Removal
General Surface Cleaning

Laser cleaning is a new technology, it is becoming more prevalent with handheld mobile systems. There are many cost, health, safety and environmental benefits to using laser cleaning as an alternative to abrasive blasting or chemical cleaning:

  • Comparing with traditional industrial cleaning methods blow dirt and sometimes harmful substances around, FLCA wobble cleaning machine only consume a limited amount of energy and can be sure of a long service life. Also you can clean on the spot without hermetically sealing the area.
  • MRodin's wobble laser cleaning machine provides industrial cleaning services that quickly and cost-efficiently clean heavy machinery parts reduce overhaul maintenance periods. Removes rust, dirt, soot, grease and oil which can build up in difficult to reach places and on finely machined part
Technical specifications
Especificación FLCA21500 FLCA23000
Laser Source Wattage1500 W3000 W
Machine Power6000 W10000 W
Laser TypeCW fiber laserCW fiber laser
Beam QualityM²＜1.8M²＜1.8
Cable Length8 m standard & 10 m or 12 m are optional
Laser Pattern5 pattern presets for different work pieces shape

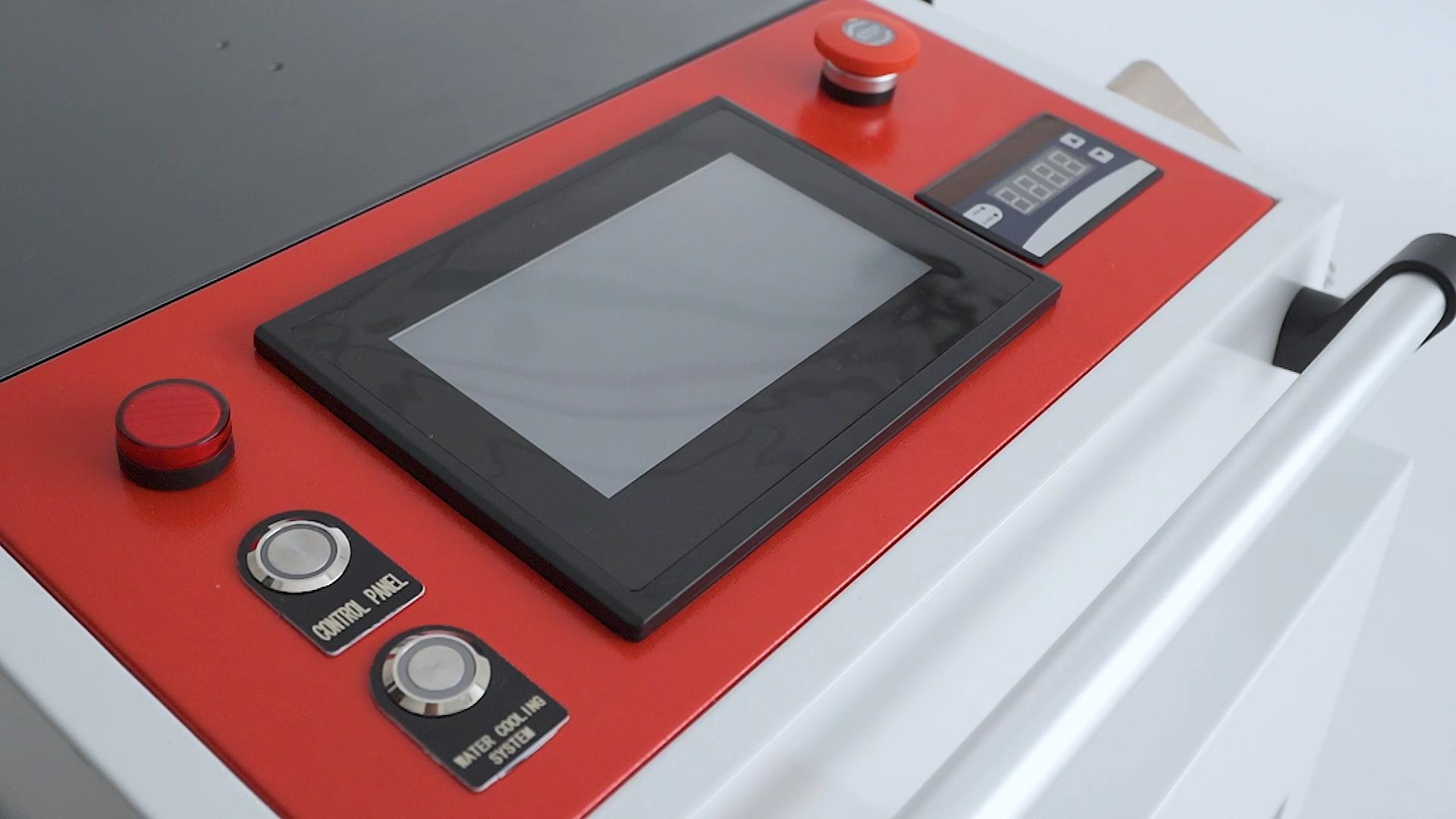

User Interface7” Touch Screen Panel
Operational Voltage380 V 3ph, 50–60 Hz, 40 A
Cooling SystemBuilt-in water-cooling
Anti-Reflection ProtectionYes
Safety FeaturesEmergency Stop / Key Switch / Remote Interlock
Package & N/G WeightWooden box 900×500×650 mm – 180/200 kg


Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.

Spare parts
