Cleaning laser

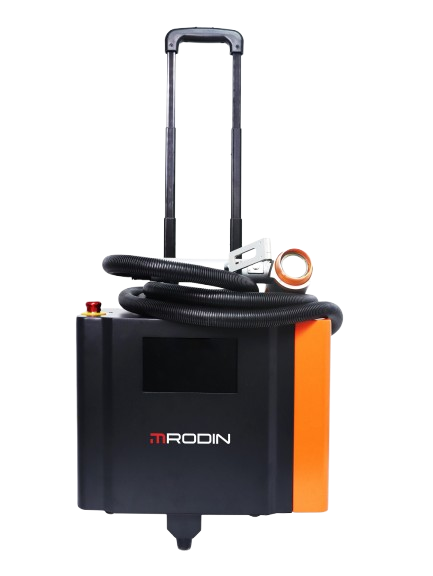

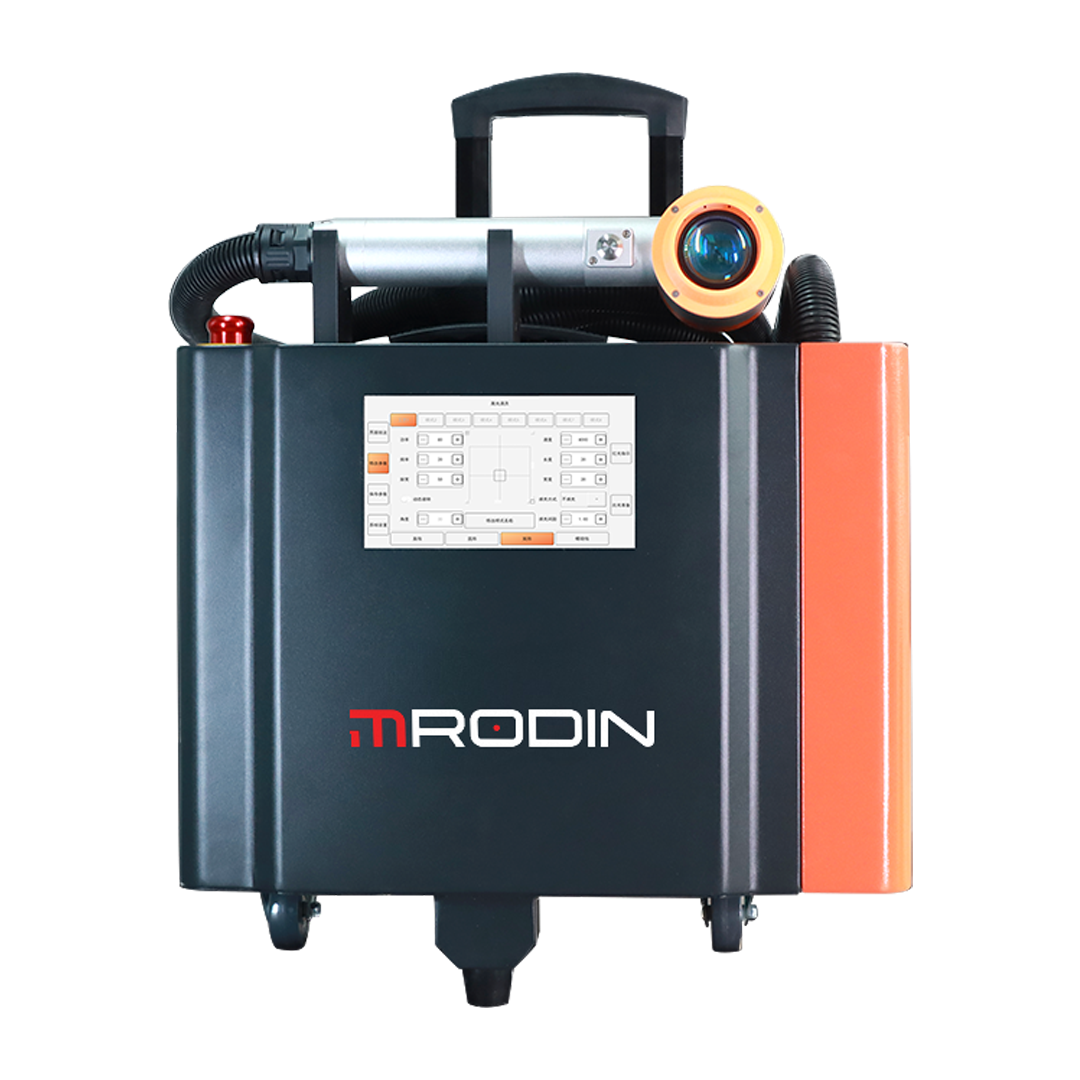

200W & 300W portable pulse wobble laser cleaner

FLCH series
Price from
15100 €
Speak to a Laser Specialist

Mobile with compact design
Self-explanatory operation

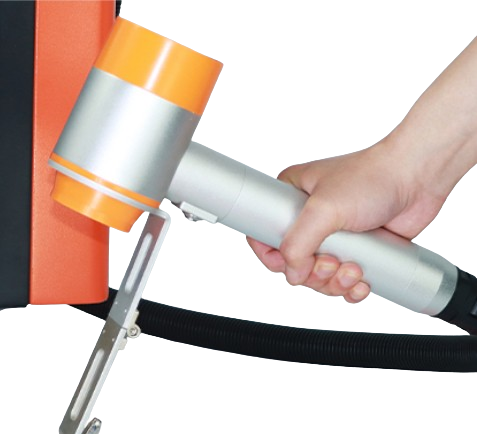

Point-and-shoot Cleaner

FLCH series is a professional-level portable finishing laser system that is the most cost-effective, efficient, and safe method of industrial cleaning, rust removal, paint and many other contaminates removal, and surface preparation. The FLCH's pulse laser offers a non-abrasive cleaning process that is safer, easy to use and more eco-friendly. It minimizes chemical and abrasive usage in industrial environments to meet increasing compliant demands from CE and other regulatory organizations.

The FLCH series are widely applied in surface prep,precise paint removal,surface texturing &conditioning,per-adhesion treatment, per and post-welding preparation, degrease/decontamination, rust & corrosion removal,mold release cleaning, Zinc, Anodization, Oxide removal.

Technical specifications
Especificación FLCH10200 FLCH10300
Laser Source Wattage200 W300 W
Machine Power750 W1200 W
Laser TypePulse laserPulse laser
Max. Single Pulse Energy1.5 mJ1.5 mJ
Pulse Repetition Frequency5–200 kHz adjustable1–3000 kHz adjustable
Pulse Width150–190 ns adjustable20–500 ns
Beam QualityM²＜1.8M²＜1.8
Cleaning Speed3000–10000 mm/s adjustable
Laser Adjustment Range0–100% gradient adjustable
Cable Length3.5 m
Cleaning Range0–100 mm continuously adjustable
Laser Pattern8 types for different workpiece shapes
Cooling MethodBuilt-in air-cooling
Electrical ParametersAC100–240 V (single-phase), 50/60 Hz
Safety FeaturesEmergency Stop / Key Switch / Remote Interlock
Package & N/G WeightWooden box 400×650×550 mm – 25/27 kg

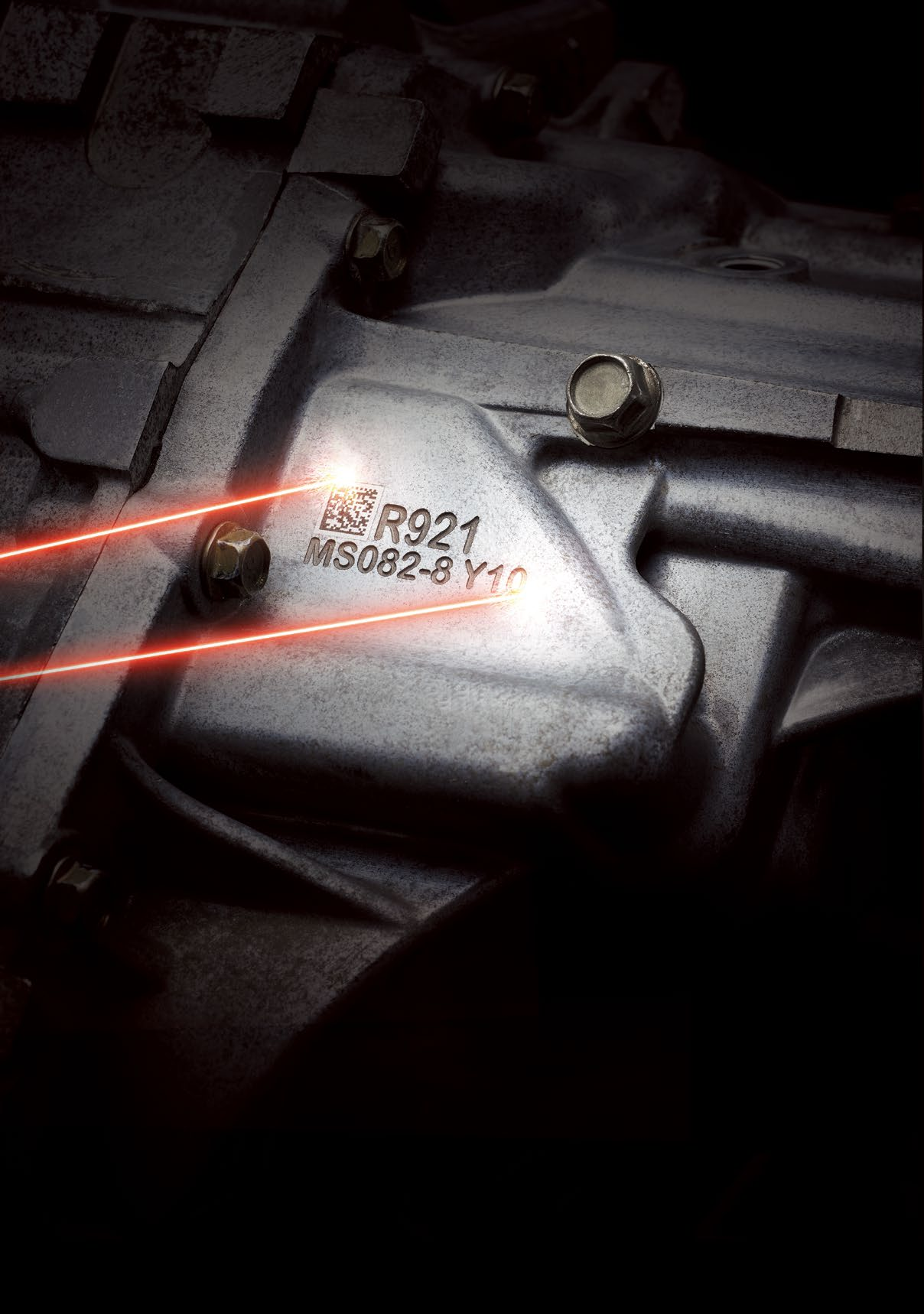

Need to mark your parts but don’t have a laser marking machine yet? No problem!

Click to get the marking sample address

You can send us your batches, and we’ll mark them at our facility using state-of-the-art Laserax technology. If your parts are too large or heavy to ship, we’ll come to you.

Our laser marking service is a fast and reliable solution to keep your production moving—whether you’re waiting for your equipment or need short-term marking support.

Spare parts
