200 to 500W handheld mobile cabinet pulse Laser cleaning station

Price from
15400

No damage
No touch
No consumables

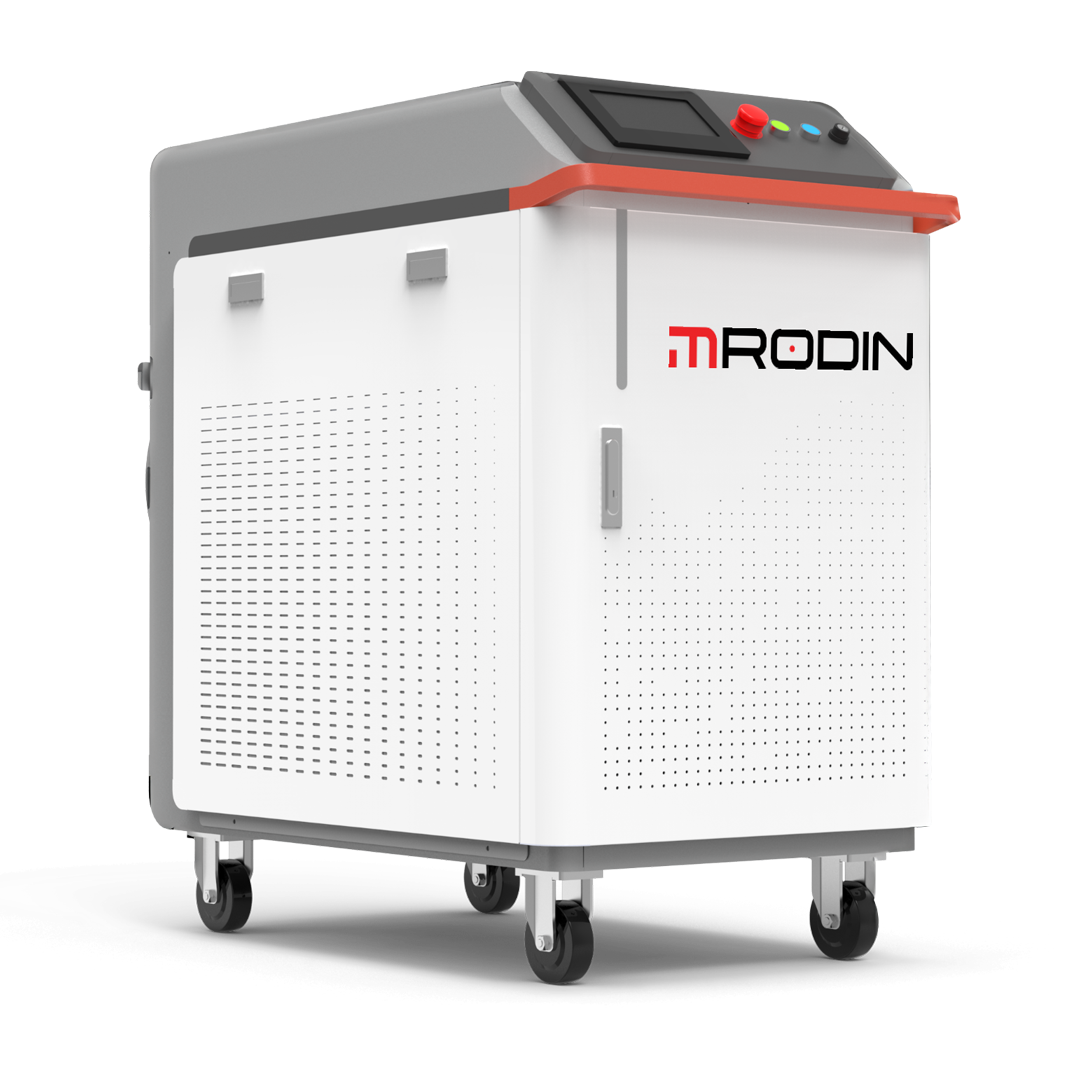

FLCP series are a heavy duty, industrial-grade, laser cleaning and surface treatment system for large areas requiring cleaning, repainting and other surface preparation operations. This handheld mobile cleaning machine offers a non-abrasive cleaning process that is safer, easy to use and more eco-friendly. The FLCP series enables diverse applications from the automotive, pharmaceutical, and food industries to production companies across various sectors, with materials ranging from stainless steel to aluminum, machine steel, copper, super alloys,depending on the material composition, level of contamination, and laser type employed.

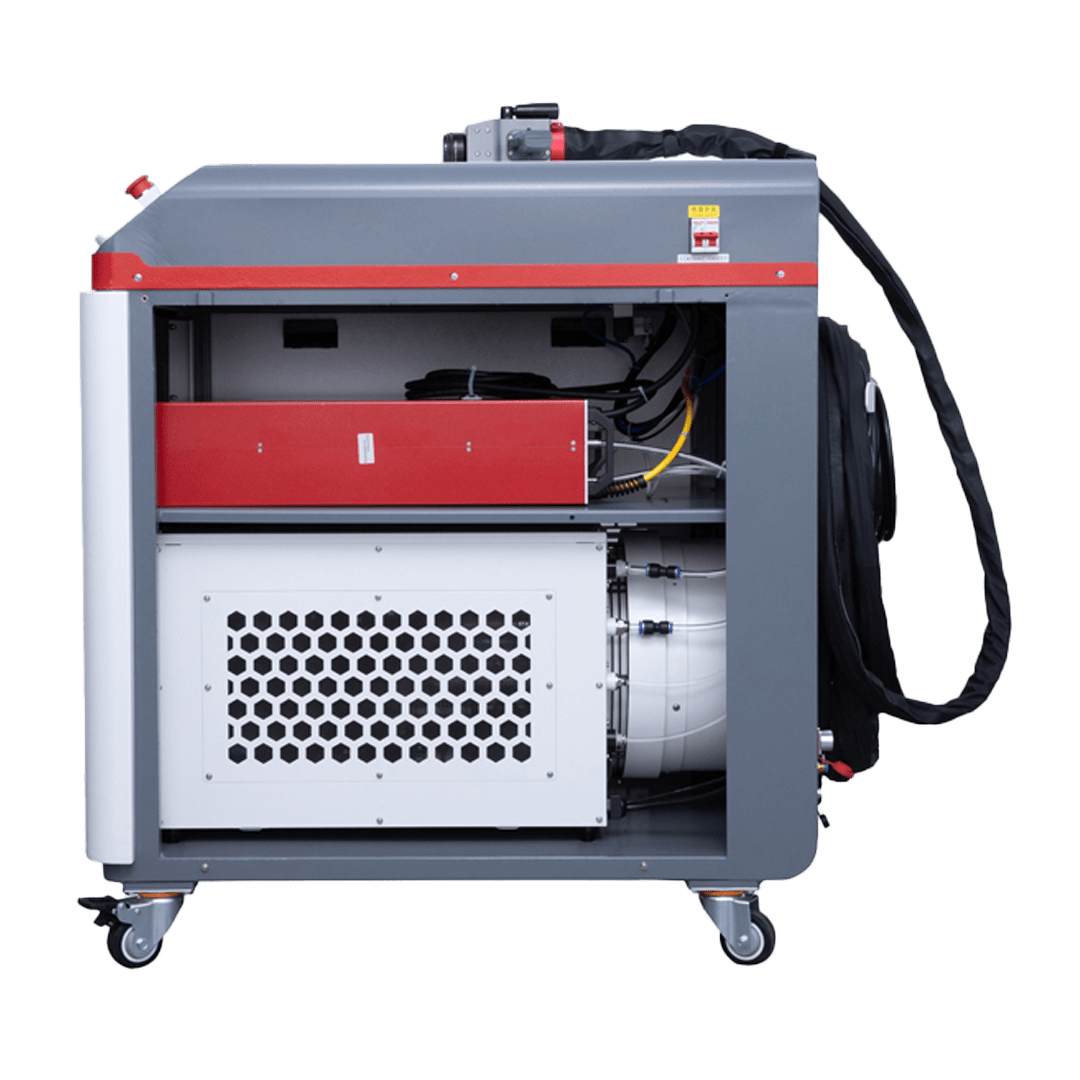

The FLCP's pulse laser plays a crucial role in laser cleaning, where the laser beam is extremely focused. It is particularly effective for removing tough layers like oxide on newly welded surfaces. Additionally, the compact water-cooled system of FLCP allows it to be utilized in hard-to-reach areas.

Technical specifications
Specification FLCP20200 FLCP20500
Laser Source Wattage200 W500 W
Machine Power2500 W4500 W
Laser TypePulse laserPulse laser
Beam QualityM²<1.5M²<9
Pulse Repetition Rate1–3000 kHz1–4000 kHz
Pulse Width13–500 ns30–500 ns
Cable Length10 m standard & 8 m or 12 m optional
Laser Pattern5 pattern presets for different work pieces shape
User Interface7” Touch Screen Panel
Anti-Reflection ProtectionYes
Operational Voltage110 V / 220 V – 380 V 3ph, 50–60 Hz
Cooling SystemBuilt-in water-cooling
Safety FeaturesEmergency Stop / Key Switch / Remote Interlock
Package & N/G WeightWooden box 950×550×650 mm – 190/210 kg
